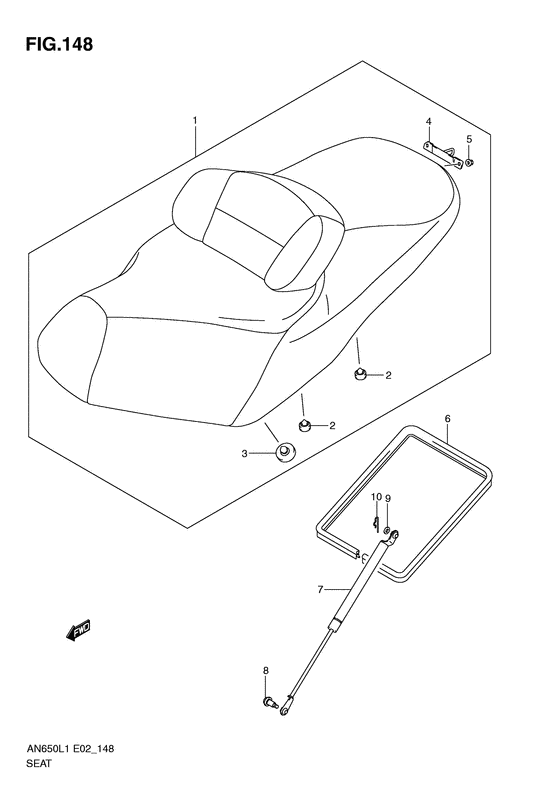

Seat (An650al1 e51) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2011
- Model code
- AN650L1(E2) L1
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45100-10G70-BYA
Seat assy
|
45100-10G70-BYA |
— | ||
| replacement | |||||
|
1
|
1
45100-10G71-BYA SEAT ASSY |
45100-10G71-BYA |
US $1,126.40 |
||
|
2
|
2
09321-10002-000 CUSHION(11.5X22X20)Cushion Cushion; |
09321-10002-000 |
from US $1.52 |
||
|
3
|
3
09321-12001-000 CUSHIONCushion, front; |
09321-12001-000 |
from US $7.79 |
||
|
4
|
4
45210-10G00-000 STRIKER,SEAT LOCK |
45210-10G00-000 |
from US $17.63 |
||
|
5
|
5
09159-06085-000 NUT |
09159-06085-000 |
US $23.60 |
||
|
6
|
6
45211-10G10-000 MOLDING,SEAT |
45211-10G10-000 |
from US $35.33 |
||
|
7
|
7
45270-10G00-000
DAMPER ASSY,SEAT
|
45270-10G00-000 |
— | ||
| replacement | |||||
|
7
|
7
45270-10G01-000 Damper Assy,seat |
45270-10G01-000 |
from US $86.11 |
||
|
8
|
8
09111-06097-000
BOLT(6X20.6)
Bolt (6x20.6); |
09111-06097-000 |
— | ||
|
9
|
9
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
10
|
10
09385-08003-000 SNAPCrip, damper Pin; |
09385-08003-000 |
from US $1.28 |
||
