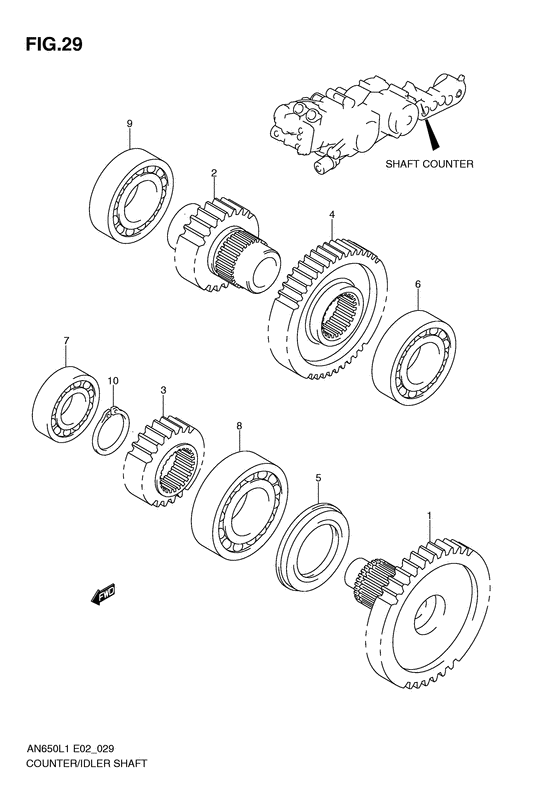

Shaft counter/idler Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2011
- Model code
- AN650L1(E2) L1
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24121-10G30-000 SHAFT,COUNTER |
24121-10G30-000 |
from US $101.20 |
||
|
2
|
2
24151-10G20-000 SHAFT,IDLENt:22 |
24151-10G20-000 |
from US $66.24 |
||
|
3
|
3
24331-10G00-000 GEAR,IDLER DRIVE(NT:25)Nt:25 |
24331-10G00-000 |
from US $43.79 |
||
|
4
|
4
24381-10G00-000 GEAR,IDLER DRIVEN(NT:43)Nt:43 |
24381-10G00-000 |
US $135.51 |
||
|
5
|
5
09283-35015-000 SEAL,OIL(35X52X6)Seal, counter shaft lh Oil seal (35x52x6); Lh |
09283-35015-000 |
from US $16 |
||
|
6
|
6
09262-30113-000 BEARING(30X55X13)Bearing, idle shaft lh Bearing (30x55x13); Lh |
09262-30113-000 |
from US $32.02 |
||
|
7
|
7
09262-20069-000 BEARING(20X47X14)Bearing (20x47x14); Rh |
09262-20069-000 |
from US $11.52 |
||
|
8
|
8
08113-62060-000 BEARINGBearing, drive shaft rh Lh |
08113-62060-000 |
from US $12.38 |
||
|
9
|
9
08113-62060-000 BEARINGBearing, drive shaft rh Hr |
08113-62060-000 |
from US $12.38 |
||
|
10
|
10
08331-3128A-000
Circlip
|
08331-3128A-000 |
— | ||
| replacement | |||||
|
10
|
10
08331-31289-000 CIRCLIP |
08331-31289-000 |
from US $1.37 |
||
