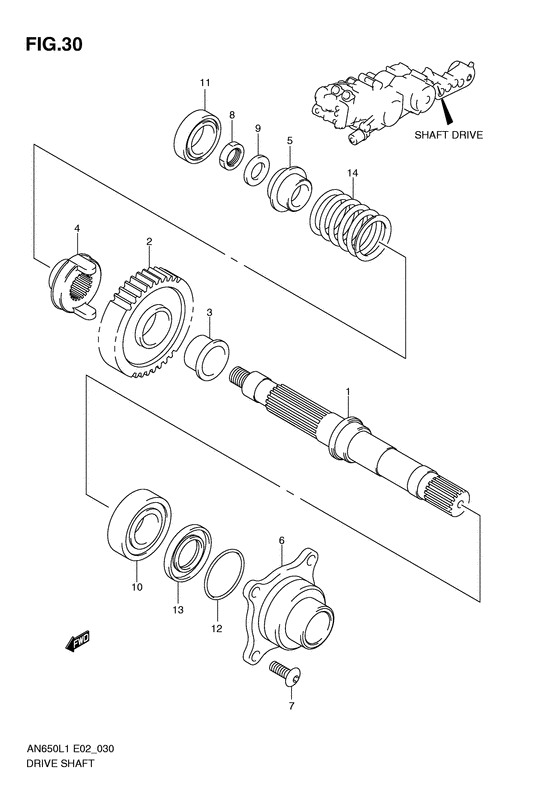

Shaft drive Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2011
- Model code
- AN650L1(E2) L1
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24131-10G00-000 SHAFT,DRIVE |
24131-10G00-000 |
from US $142.56 |
||
|
2
|
2
24371-10G00-000 GEAR,FINAL DRIVEN(NT:40)Nt:40 |
24371-10G00-000 |
from US $82.06 |
||
|
3
|
3
24632-10G00-000 BUSH,FINAL DRIVEN GEAR |
24632-10G00-000 |
from US $23 |
||
|
4
|
4
24922-10G00-000
Dog, output cam
|
24922-10G00-000 |
— | ||
| replacement | |||||
|
4
|
4
24922-26J00-000 DOG,OUTPUT CAM |
24922-26J00-000 |
from US $30.73 |
||
|
5
|
5
24923-10G00-000 STOPPER,CAM SPRING |
24923-10G00-000 |
from US $24.84 |
||
|
6
|
6
24943-10G00-000 HOUSING,OIL SEAL |
24943-10G00-000 |
US $54.10 |
||
|
7
|
7
09106-08161-000 BOLT(8X20)Bolt, panel (8x18) Bolt (8x20); |
09106-08161-000 |
from US $5.92 |
||
|
8
|
8
09140-16001-000 NUTNut; Rh |
09140-16001-000 |
US $17.30 |
||
| replacement | |||||
|
8
|
8
09140-16005-000 NUTNut Nut; Rh |
09140-16005-000 |
from US $2.72 |
||
|
9
|
9
09160-16029-000 WASHER(16X29X4)Washer, sec drive nut Washer (16x29x4); |
09160-16029-000 |
from US $5.58 |
||
|
10
|
10
09262-25136-000 BEARING(25X52X13)Bearing (25x52x13); Lh |
09262-25136-000 |
from US $26.31 |
||
|
11
|
11
09262-30113-000 BEARING(30X55X13)Bearing, idle shaft lh Bearing (30x55x13); Rh |
09262-30113-000 |
from US $32.02 |
||
|
12
|
12
09280-45004-000 O RING(D:2.4,ID:44.7)O ring (d:2.4,id:44.7); |
09280-45004-000 |
from US $1.89 |
||
|
13
|
13
09283-25076-000 SEAL,OIL(25X45X5)Seal, oil Oil seal (25x45x5); |
09283-25076-000 |
from US $7.14 |
||
|
14
|
14
09440-45004-000 SPRING |
09440-45004-000 |
from US $33.17 |
||
