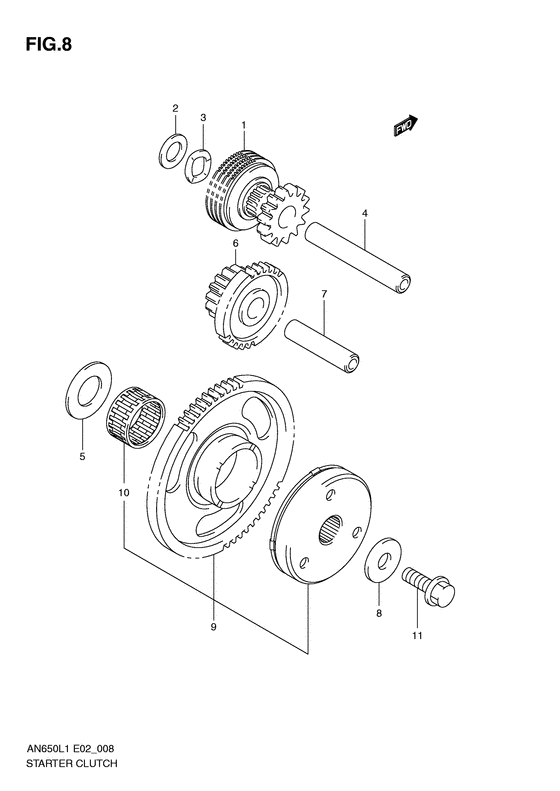

Starter clutch Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2011
- Model code
- AN650L1(E2) L1
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12600-10G01-000
LIMITER ASSY,STARTER IDLE GEAR
|
12600-10G01-000 |
— | ||
| replacement | |||||
|
1
|
1
12600-10G02-000 LIMITER ASSY,STARTER IDLE GEAR |
12600-10G02-000 |
from US $151.25 |
||
|
2
|
2
09160-13006-000 WASHER(13X24X1)Washer, limiter assy thrust Washer (13x24x1); |
09160-13006-000 |
from US $1.87 |
||
|
3
|
3
09164-13008-000 WASHER |
09164-13008-000 |
US $24.30 |
||
|
4
|
4
09206-13021-000 PIN(7.4X13X77) |
09206-13021-000 |
US $66.20 |
||
|
5
|
5
08211-20403-000 WASHERWasher, starter clutch |
08211-20403-000 |
from US $1.76 |
||
|
6
|
6
12612-10G00-000 GEAR,STARTER IDLE NO.2 |
12612-10G00-000 |
US $47.10 |
||
|
7
|
7
09206-12002-000 PIN(7X12X50.5) |
09206-12002-000 |
from US $18.36 |
||
|
8
|
8
08211-10285-000 WASHERWasher, starter clutch no.2 |
08211-10285-000 |
from US $1.38 |
||
|
9
|
9
12600-10871-000 Clutch Set, Starter |
12600-10871-000 |
from US $253.92 |
||
|
10
|
10
09263-28031-000 BEARING(28X34X16.8)Bearing, starter clutch gear Bearing (28x34x16.8); |
09263-28031-000 |
from US $12.77 |
||
|
11
|
11
09103-10189-000 BOLT(10X23)Bolt, starter one way clutch Bolt (10x23); |
09103-10189-000 |
from US $2.40 |
||
