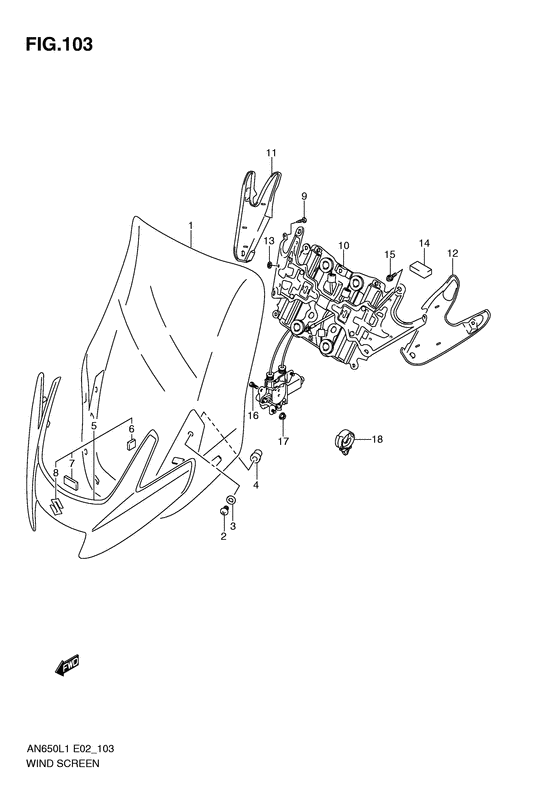

Wind screen (An650al1 e2) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2011
- Model code
- AN650L1(E2) L1
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
94611-10GA2-000 WINDSCREEN |
94611-10GA2-000 |
from US $911.36 |
||
|
2
|
2
02142-0516B-000 SCREW |
02142-0516B-000 |
from US $0.80 |
||
|
3
|
3
09161-05017-000 WASHER(5.2X14X1.5)Washer (5.2x14x1.5); |
09161-05017-000 |
from US $1.98 |
||
|
4
|
4
09159-05048-000 NUT |
09159-05048-000 |
from US $4.41 |
||
|
5
|
5
94640-10G10-000 COVER,WINDSCREEN |
94640-10G10-000 |
from US $110.03 |
||
|
6
|
6
94642-10GA0-000 CUSHION,WINDSCREEN COVER |
94642-10GA0-000 |
from US $1.91 |
||
|
7
|
7
94643-10G01-000 CUSHIONCushion, cover no.2; |
94643-10G01-000 |
from US $1.52 |
||
|
8
|
8
68641-14G00-000 EMBLEM,SEmblem, "s"; |
68641-14G00-000 |
from US $14.29 |
||
|
9
|
9
09132-05053-000 SCREW(5X16)Screw (5x16); |
09132-05053-000 |
from US $0.76 |
||
|
10
|
10
94600-10GA1-000
REGULATOR ASSY,WINDSCREEN
|
94600-10GA1-000 |
— | ||
| replacement | |||||
|
10
|
10
94600-10GA2-000 REGULATOR ASSY,WINDSCREEN |
94600-10GA2-000 |
from US $686.40 |
||
|
11
|
11
94651-10GA1-000 COVER,REGULATOR,R |
94651-10GA1-000 |
from US $15.24 |
||
|
12
|
12
94661-10GA1-000 COVER,REGULATOR,L |
94661-10GA1-000 |
from US $15.24 |
||
|
13
|
13
09148-03011-000 NUT |
09148-03011-000 |
from US $2.84 |
||
|
14
|
14
94652-10GA0-000 CUSHION,COVER |
94652-10GA0-000 |
from US $3.31 |
||
|
15
|
15
07120-0612B-000 BOLTPlug Screw; |
07120-0612B-000 |
from US $0.96 |
||
|
16
|
16
09100-06157-000 BOLT(6X8)Bolt, plate Bolt (6x8); |
09100-06157-000 |
from US $0.96 |
||
|
17
|
17
08316-1006B-000 NUTNut, motor; |
08316-1006B-000 |
from US $0.76 |
||
|
18
|
18
09403-14307-000 CLAMP |
09403-14307-000 |
US $21.30 |
||
