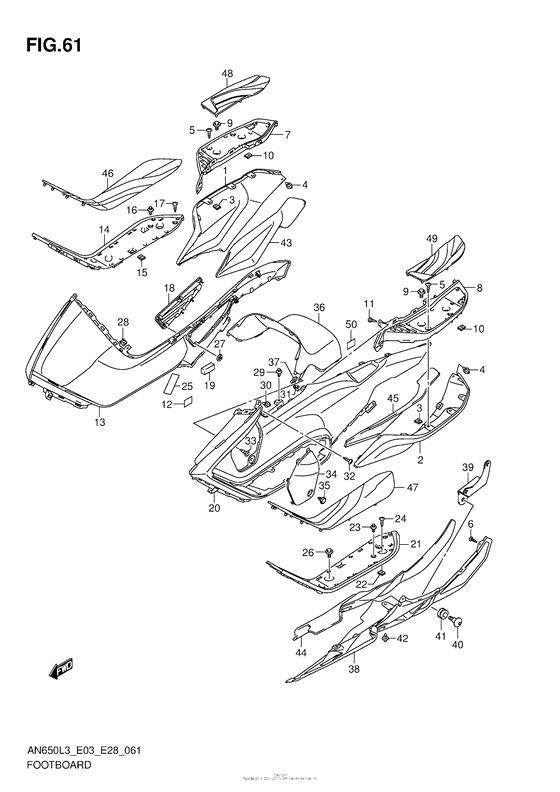

Footboard Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2013
- Model code
- AN650L3
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48127-26J01-YKV
FOOTBOARD,RR LWR,R(BLACK)
|
48127-26J01-YKV |
— | ||
| replacement | |||||
|
1
|
1
48127-26J20-YKV FOOTBOARD,REAR LOWER,R |
48127-26J20-YKV |
from US $84.80 |
||
|
2
|
2
48128-26J01-YKV
FOOTBOARD,REAR LOWER,L(BLACK)
|
48128-26J01-YKV |
— | ||
| replacement | |||||
|
2
|
2
48128-26J20-YKV FOOTBOARD,REAR LOWER,L |
48128-26J20-YKV |
from US $80.96 |
||
|
3
|
3
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
4
|
4
09409-06314-5PK CLIP(BLACK) |
09409-06314-5PK |
from US $1.40 |
||
|
5
|
5
03541-0512A-000 SCREW |
03541-0512A-000 |
from US $0.68 |
||
|
6
|
6
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
7
|
7
48125-26J50-000 FOOTBOARD,REAR UPPER,R |
48125-26J50-000 |
from US $19.87 |
||
|
8
|
8
48126-26J50-000 FOOTBOARD,REAR UPPER,L |
48126-26J50-000 |
from US $19.87 |
||
|
9
|
9
09111-06109-000 BOLT(6X14.8) |
09111-06109-000 |
from US $5.71 |
||
|
10
|
10
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
11
|
11
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
12
|
12
33652-13G00-000 PROTECTOR,BATTERY(30X40X1.0) |
33652-13G00-000 |
from US $2.08 |
||
|
13
|
13
48120-26J01-291
FOOTBOARD,R(BLACK)
|
48120-26J01-291 |
— | ||
| replacement | |||||
|
13
|
13
48120-26J50-000 FOOTBOARD COMP,R |
48120-26J50-000 |
from US $110.77 |
||
|
14
|
14
48120-26J01-291
FOOTBOARD,R(BLACK)
|
48120-26J01-291 |
— | ||
| replacement | |||||
|
14
|
14
48120-26J50-000 FOOTBOARD COMP,R |
48120-26J50-000 |
from US $110.77 |
||
|
15
|
15
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
16
|
16
09409-06314-5PK CLIP(BLACK) |
09409-06314-5PK |
from US $1.40 |
||
|
17
|
17
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
18
|
18
48123-26J50-000 LOUVER,AIR,R |
48123-26J50-000 |
from US $6.26 |
||
|
19
|
19
48127-10G00-000 CUSHION |
48127-10G00-000 |
from US $11.63 |
||
|
20
|
20
48130-26J50-000 FOOTBOARD COMP,L |
48130-26J50-000 |
from US $174.80 |
||
|
21
|
21
48130-26J50-000 FOOTBOARD COMP,L |
48130-26J50-000 |
from US $174.80 |
||
|
22
|
22
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
23
|
23
09409-06314-5PK CLIP(BLACK) |
09409-06314-5PK |
from US $1.40 |
||
|
24
|
24
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
25
|
25
48327-26J00-000 SHIELD,FOOTBOARD,R |
48327-26J00-000 |
from US $6.66 |
||
|
26
|
26
48196-26J00-000 Bolt |
48196-26J00-000 |
US $2.50 |
||
|
27
|
27
09148-03010-000 NUT |
09148-03010-000 |
from US $1.28 |
||
|
28
|
28
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
29
|
29
09409-06314-5PK CLIP(BLACK) |
09409-06314-5PK |
from US $1.40 |
||
|
30
|
30
09409-06329-000 CLIPClip, lower |
09409-06329-000 |
from US $1.52 |
||
|
31
|
31
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
32
|
32
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
33
|
33
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
34
|
34
48191-26J50-000
LID,MAINTENANCE
|
48191-26J50-000 |
— | ||
| replacement | |||||
|
34
|
34
48191-26J51-000 LID,MAINTENANCE |
48191-26J51-000 |
from US $14.56 |
||
|
35
|
35
94479-35F00-000 CLIPClip, lower |
94479-35F00-000 |
from US $1.52 |
||
|
36
|
36
48124-26J50-000 COVER,CENTER |
48124-26J50-000 |
from US $48 |
||
|
37
|
37
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
38
|
38
48138-26J50-000 COVER,UNDER CTR |
48138-26J50-000 |
from US $46.36 |
||
|
39
|
39
48330-10G00-000 BRACKET,UNDER COVER |
48330-10G00-000 |
from US $7.47 |
||
|
40
|
40
09139-06190-000 BOLT(6X20) |
09139-06190-000 |
from US $1.82 |
||
|
41
|
41
09320-09016-000 CUSHIONCushion, holder |
09320-09016-000 |
from US $1.06 |
||
|
42
|
42
09409-07333-000 CLIPClip, inner |
09409-07333-000 |
from US $1.22 |
||
|
43
|
43
48313-26J00-000 CUSHION,RR FOOTBOARD LWR,R |
48313-26J00-000 |
US $13.20 |
||
| replacement | |||||
|
43
|
43
48313-26J01-000 Cushion,rr Footboard Lwr Rh |
48313-26J01-000 |
from US $9.31 |
||
|
44
|
44
48316-26J00-000 CUSHION,UNDER COVER LWR NO.1 |
48316-26J00-000 |
from US $22.76 |
||
|
45
|
45
48323-26J00-000 CUSHION,RR FOOTBOARD LWR,L |
48323-26J00-000 |
from US $4.45 |
||
|
46
|
46
48211-26J00-291 MAT,FLOOR FR,R |
48211-26J00-291 |
from US $23.37 |
||
|
47
|
47
48221-26J00-291
MAT,FLOOR FR,L
|
48221-26J00-291 |
— | ||
| replacement | |||||
|
47
|
47
48221-26JA0-291 Mat,floor Fr Lh(Black) |
48221-26JA0-291 |
from US $23.37 |
||
|
48
|
48
48231-26J00-291 MAT,FLOOR RR,R |
48231-26J00-291 |
from US $8.28 |
||
|
49
|
49
48241-26J00-291 MAT,FLOOR RR,L |
48241-26J00-291 |
from US $8.28 |
||
|
50
|
50
17798-29E30-000 CUSHION,RADIATOR COVER FR |
17798-29E30-000 |
from US $3.04 |
||
