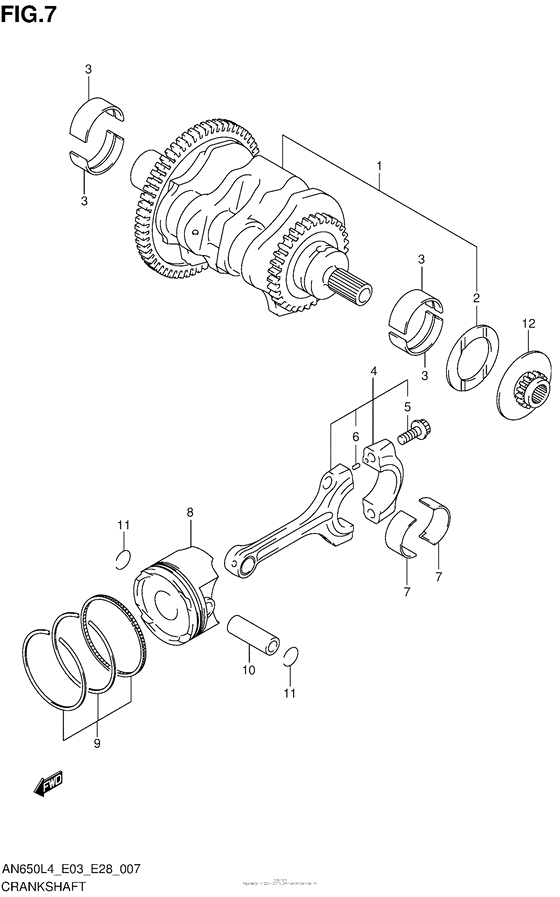

Crankshaft Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2014
- Model code
- AN650L4
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12200-10830-000 CRANKSHAFT SET |
12200-10830-000 |
from US $834.24 |
||
|
2
|
2
09160-48005-000 WASHER(48.1X64X2.04) |
09160-48005-000 |
US $20 |
||
|
2
|
2
09160-48006-000 WASHER(48.1X64X2.06) |
09160-48006-000 |
from US $20 |
||
|
2
|
2
09160-48007-000 WASHER(48.1X64X2.09) |
09160-48007-000 |
from US $23.31 |
||
|
2
|
2
09160-48008-000 WASHER(48.1X64X2.11) |
09160-48008-000 |
from US $23.31 |
||
|
2
|
2
09160-48009-000 WASHER(48.1X64X2.14) |
09160-48009-000 |
from US $23.31 |
||
|
2
|
2
09160-48010-000 WASHER(48.1X64X2.16) |
09160-48010-000 |
from US $34.83 |
||
|
3
|
3
12229-10G01-0A0 Bearing,crankshaft |
12229-10G01-0A0 |
from US $10.86 |
||
|
3
|
3
12229-10G01-0B0 Bearing,crankshaft |
12229-10G01-0B0 |
from US $12.16 |
||
|
3
|
3
12229-10G01-0C0 Bearing,crankshaft |
12229-10G01-0C0 |
from US $12.16 |
||
|
4
|
4
12160-10G00-000
CONNECTING ROD ASSY
|
12160-10G00-000 |
— | ||
| replacement | |||||
|
4
|
4
12160-10G10-000 CONNROD ASSY |
12160-10G10-000 |
from US $121.44 |
||
|
5
|
5
12163-10G00-000 BOLT,CONNECTING ROD |
12163-10G00-000 |
US $10.78 |
||
|
6
|
6
12165-27A50-000 PIN,CONNECTING RODPin, connrod |
12165-27A50-000 |
from US $1.40 |
||
|
7
|
7
12164-10G00-0A0 Bearing,crank Pin |
12164-10G00-0A0 |
US $11.78 |
||
|
7
|
7
12164-10G00-0B0 Bearing,crank Pin |
12164-10G00-0B0 |
US $11.78 |
||
|
7
|
7
12164-10G00-0C0 Bearing,crank Pin |
12164-10G00-0C0 |
US $11.78 |
||
|
7
|
7
12164-10G00-0D0 Bearing,crank Pin |
12164-10G00-0D0 |
from US $11.78 |
||
|
8
|
8
12111-10G11-0F0 PISTON |
12111-10G11-0F0 |
from US $72.86 |
||
|
9
|
9
12140-10G10-000 RING SET,PISTON |
12140-10G10-000 |
from US $71.76 |
||
|
10
|
10
12151-10G00-000 PIN,PISTON |
12151-10G00-000 |
from US $9.68 |
||
|
11
|
11
09381-16001-000 RING,SNAPCirclip |
09381-16001-000 |
from US $1.06 |
||
|
12
|
12
12731-10G10-000 SPROCKET,CAM CHAIN DRIVE |
12731-10G10-000 |
from US $55.30 |
||
