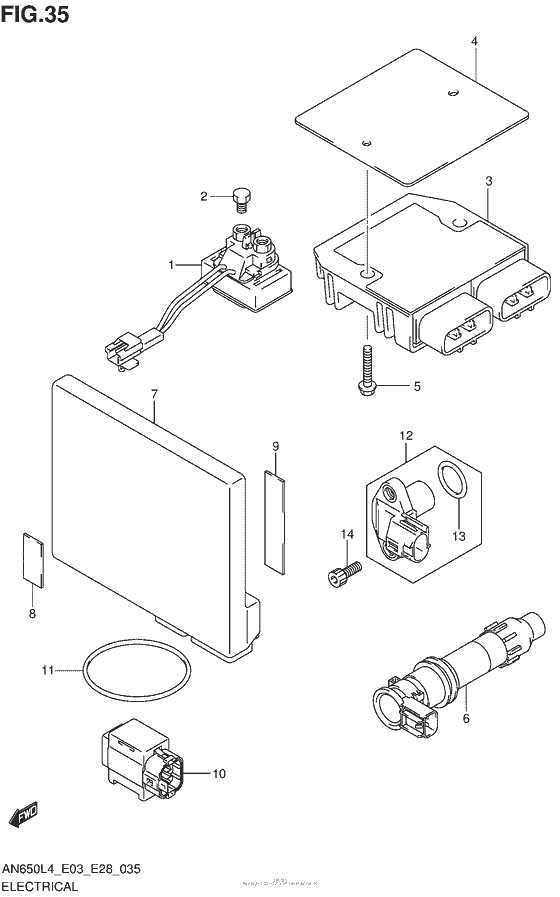

Electrical (An650L4 E33) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2014
- Model code
- AN650L4
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31800-10G00-000
RELAY ASSY,STARTING MOTOR
|
31800-10G00-000 |
— | ||
| replacement | |||||
|
1
|
1
31800-10G01-000 Relay Assy,starting Motor |
31800-10G01-000 |
US $64.40 |
||
|
2
|
2
09128-06013-000 SCREW(6X8)Screw |
09128-06013-000 |
from US $1.94 |
||
|
3
|
3
32800-26J00-000
Rectifier Assy
|
32800-26J00-000 |
— | ||
| replacements | |||||
|
3
|
3
32800-26J01-000
Rectifier Assy
|
32800-26J01-000 |
— | ||
|
3
|
3
32800-26J02-000 Rectifier Assy |
32800-26J02-000 |
from US $198.72 |
||
|
4
|
4
32832-26J00-000 PLATE,RECTIFIER |
32832-26J00-000 |
from US $13.98 |
||
|
5
|
5
02162-0630A-000 SCREW |
02162-0630A-000 |
from US $2.82 |
||
|
6
|
6
33410-47H00-000 COIL ASSY,IGNITION |
33410-47H00-000 |
from US $87.12 |
||
|
7
|
7
32920-26J10-000
CONTROL UNIT,FI
|
32920-26J10-000 |
— | ||
| replacement | |||||
|
7
|
7
32920-26J11-000 Control Unit,fi |
32920-26J11-000 |
from US $1,228.08 |
||
|
8
|
8
33651-37000-000 PROTECTOR(170X95X3.0)Protector (20x130x3) |
33651-37000-000 |
from US $4.41 |
||
|
9
|
9
33652-07D00-000 PROTECTOR(80X80X2)Protector (80x80x2) |
33652-07D00-000 |
from US $2.56 |
||
|
10
|
10
33960-06G10-000 SENSOR ASSY,FUEL CUT |
33960-06G10-000 |
from US $60.04 |
||
|
11
|
11
09280-61002-000
O RING(D:3.5,ID:61)
|
09280-61002-000 |
— | ||
| replacement | |||||
|
11
|
11
09280-61004-000 O Ring(D:3.5,id:61) |
09280-61004-000 |
from US $4.11 |
||
|
12
|
12
32160-02F10-000 SENSOR ASSY,CAM POSITION |
32160-02F10-000 |
from US $162.64 |
||
| replacement | |||||
|
12
|
12
32160-02F00-000 SENSOR ASSY,CAM POSITION |
32160-02F00-000 |
US $127.03 |
||
|
13
|
13
32161-02F00-000 PACKING |
32161-02F00-000 |
from US $5.23 |
||
|
14
|
14
07130-0616A-000 BOLTBolt, piston jet valve |
07130-0616A-000 |
from US $0.96 |
||
| replacement | |||||
|
14
|
14
07130-0616B-000 BOLT |
07130-0616B-000 |
from US $0.91 |
||
