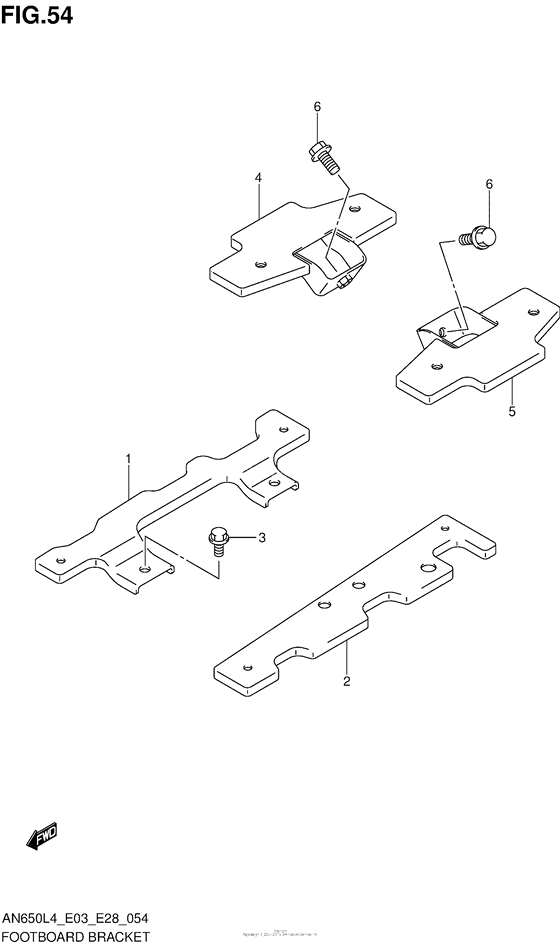

Footboard Bracket Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2014
- Model code
- AN650L4
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43510-26J00-000 BRACKET,FR FOOTBOARD,R |
43510-26J00-000 |
from US $17.66 |
||
|
2
|
2
43520-26J00-000 BRACKET,FR FOOTBOARD,L |
43520-26J00-000 |
from US $17.66 |
||
|
3
|
3
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
4
|
4
43620-26J02-000 BRACE,PILLION FOOTBOARD,R |
43620-26J02-000 |
from US $17.26 |
||
|
5
|
5
43720-26J02-000 BRACE,PILLION FOOTBOARD,L |
43720-26J02-000 |
from US $17.26 |
||
|
6
|
6
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
