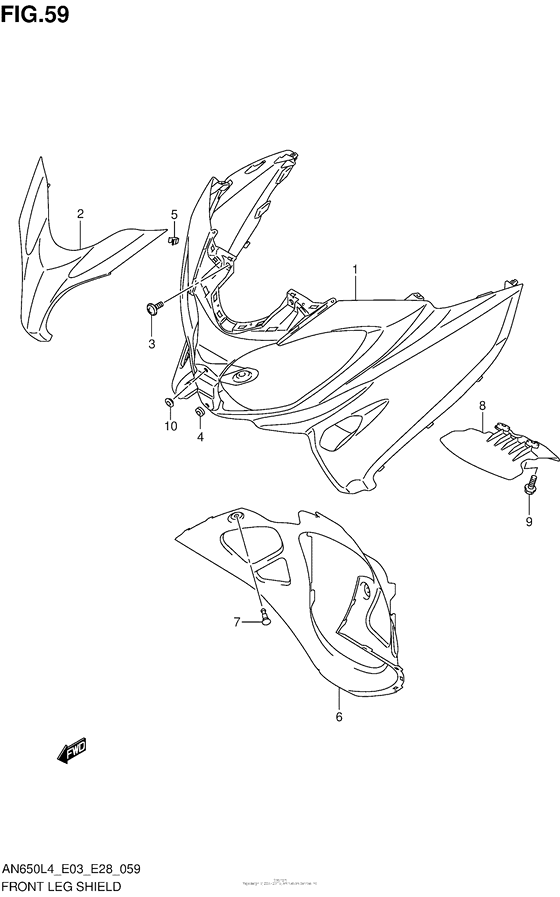

Front Leg Shield Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2014
- Model code
- AN650L4
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48111-26J00-PGZ SHIELD,LEG FR |
48111-26J00-PGZ |
from US $424.20 |
||
|
1
|
1
48111-26J00-RB5 SHIELD,LEG FR |
48111-26J00-RB5 |
from US $522.50 |
||
|
1
|
1
48111-26J00-YVB SHIELD,LEG FR |
48111-26J00-YVB |
from US $375.36 |
||
|
2
|
2
48131-26J01-PGZ COVER,FR LEG SHIELD(GRAY) |
48131-26J01-PGZ |
from US $73.50 |
||
|
2
|
2
48131-26J01-RB5 COVER,FR LEG SHIELD(WHITE) |
48131-26J01-RB5 |
from US $88.20 |
||
|
2
|
2
48131-26J01-YVB COVER,FR LEG SHIELD(BLACK) |
48131-26J01-YVB |
US $74.70 |
||
|
3
|
3
09136-06002-000 SCREW(6X12) |
09136-06002-000 |
from US $0.70 |
||
|
4
|
4
09320-06016-000
CUSHION
|
09320-06016-000 |
— | ||
| replacement | |||||
|
4
|
4
09320-06027-000 Cushion,fuel Tank Cover Center |
09320-06027-000 |
from US $1.62 |
||
|
5
|
5
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
6
|
6
48137-26J50-000 SHIELD,LEG LOWER |
48137-26J50-000 |
from US $49.31 |
||
|
7
|
7
94479-35F00-000 CLIPClip, lower |
94479-35F00-000 |
from US $1.52 |
||
|
8
|
8
94458-10G00-000 COVER,LWR BRACKET |
94458-10G00-000 |
from US $11.63 |
||
|
9
|
9
09111-06107-000 BOLT(6X12) |
09111-06107-000 |
from US $0.76 |
||
|
10
|
10
09320-06026-000 CUSHION |
09320-06026-000 |
from US $1.82 |
||
