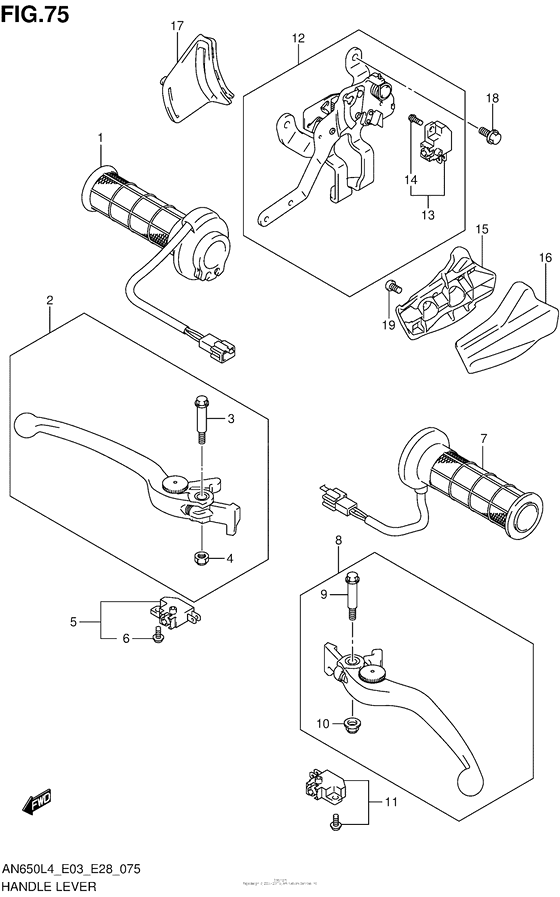

Handle Lever (An650Zl4 E28) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2014
- Model code
- AN650L4
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57110-05H21-000 HEATER ASSY,THROTTLE GRIP |
57110-05H21-000 |
from US $168.91 |
||
|
2
|
2
57300-10G32-000 Lever assy,brake |
57300-10G32-000 |
from US $27.36 |
||
|
3
|
3
57431-17H02-000 BOLT,LEVER PIVOT |
57431-17H02-000 |
from US $4.80 |
||
|
4
|
4
08319-2106A-000 NUT |
08319-2106A-000 |
from US $1.12 |
||
|
5
|
5
57460-14J01-000
SWITCH ASSY,FR BRAKE
|
57460-14J01-000 |
— | ||
| replacement | |||||
|
5
|
5
57460-14J02-000 Switch Assy,stop |
57460-14J02-000 |
US $51.90 |
||
|
6
|
6
57465-17C00-000 SCREW |
57465-17C00-000 |
from US $1.52 |
||
|
7
|
7
57210-05H10-000 HEATER ASSY,GRIP,L |
57210-05H10-000 |
from US $132.48 |
||
|
8
|
8
57500-10G32-000 LEVER ASSY,RR BRAKE |
57500-10G32-000 |
from US $57.78 |
||
|
9
|
9
57431-17H02-000 BOLT,LEVER PIVOT |
57431-17H02-000 |
from US $4.80 |
||
|
10
|
10
08319-2106A-000 NUT |
08319-2106A-000 |
from US $1.12 |
||
|
11
|
11
57560-14J01-000
SWITCH ASSY,RR BRAKE
|
57560-14J01-000 |
— | ||
| replacement | |||||
|
11
|
11
57560-14J02-000 Switch Assy,rr Brake |
57560-14J02-000 |
US $52.17 |
||
|
12
|
12
57800-26J00-000 LEVER ASSY,BRAKE LOCK |
57800-26J00-000 |
from US $106.72 |
||
|
13
|
13
57460-14J01-000
SWITCH ASSY,FR BRAKE
|
57460-14J01-000 |
— | ||
| replacement | |||||
|
13
|
13
57460-14J02-000 Switch Assy,stop |
57460-14J02-000 |
US $51.90 |
||
|
14
|
14
57465-17C00-000 SCREW |
57465-17C00-000 |
from US $1.52 |
||
|
15
|
15
57821-26J00-000 KNOB,BRAKE LOCK |
57821-26J00-000 |
from US $6.34 |
||
|
16
|
16
57822-26J00-PGZ GARNISH,BRAKE LOCK KNOB |
57822-26J00-PGZ |
from US $17.30 |
||
|
16
|
16
57822-26J00-RB5 GARNISH,BRAKE LOCK KNOB(WHITE) |
57822-26J00-RB5 |
from US $17.30 |
||
|
16
|
16
57822-26J00-YVB GARNISH,BRAKE LOCK KNOB |
57822-26J00-YVB |
from US $16.78 |
||
|
17
|
17
57951-26J00-000 GROMMET,LEVER SEAL |
57951-26J00-000 |
from US $7.65 |
||
|
18
|
18
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
19
|
19
02112-0508A-000 SCREW |
02112-0508A-000 |
from US $0.80 |
||
