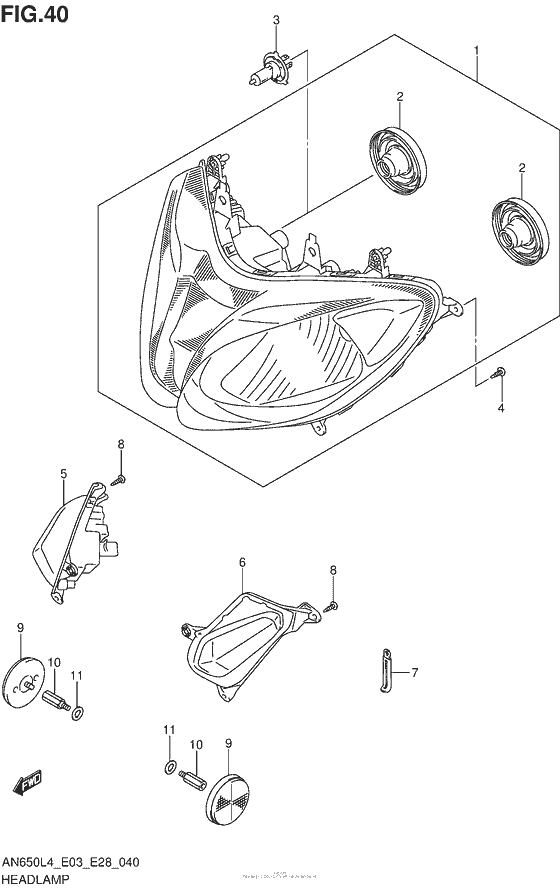

Headlamp Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2014
- Model code
- AN650L4
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35100-26J00-999 HEADLAMP ASSY |
35100-26J00-999 |
from US $668.29 |
||
|
2
|
2
35179-26J00-000 COVER,BULB |
35179-26J00-000 |
from US $10.67 |
||
|
3
|
3
09471-12182-000 BULB(12V60/55W,H4) |
09471-12182-000 |
from US $26.98 |
||
|
4
|
4
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
5
|
5
36101-26J00-000 LAMP ASSY,FR POSITION,R |
36101-26J00-000 |
from US $174.44 |
||
|
6
|
6
36102-26J00-000 LAMP ASSY,FR POSITION,L |
36102-26J00-000 |
from US $118.76 |
||
|
7
|
7
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire |
09404-06429-000 |
from US $1.52 |
||
|
8
|
8
03541-0416A-000 SCREWScrew, trunk box lamp |
03541-0416A-000 |
from US $0.76 |
||
|
9
|
9
35950-14A11-000 REFLEX REFLECTOR ASSY,FR SIDE |
35950-14A11-000 |
from US $9.58 |
||
|
10
|
10
09119-06109-000 BOLT |
09119-06109-000 |
from US $6.69 |
||
|
11
|
11
09160-08043-000 WASHER(8.5X18X1)Washer, heat switch |
09160-08043-000 |
from US $1.06 |
