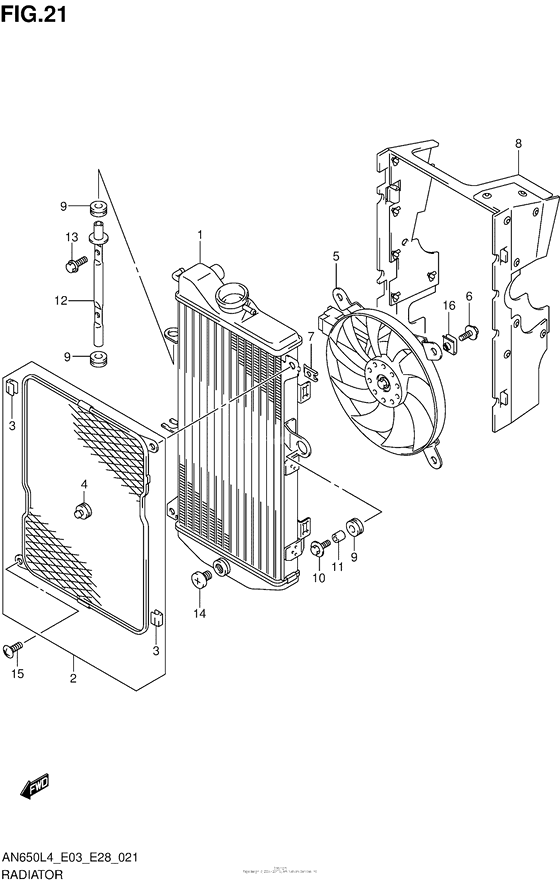

Radiator Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2014
- Model code
- AN650L4
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17710-26J00-000 RADIATOR ASSY,WATER |
17710-26J00-000 |
from US $672.32 |
||
|
2
|
2
17750-10G00-000
GUARD,RADIATOR
|
17750-10G00-000 |
— | ||
| replacement | |||||
|
2
|
2
17750-10G01-000 Guard,radiator |
17750-10G01-000 |
from US $51.15 |
||
|
3
|
3
17765-09F00-000
PROTECTOR,CTR
|
17765-09F00-000 |
— | ||
| replacement | |||||
|
3
|
3
17765-09F01-000 Protector,ctr |
17765-09F01-000 |
from US $2.17 |
||
|
4
|
4
17768-33410-000 CUSHION,RADIATOR COVER UPPER |
17768-33410-000 |
US $1.95 |
||
|
5
|
5
17800-26J00-000 FAN ASSY,RADIATOR |
17800-26J00-000 |
from US $443.52 |
||
|
6
|
6
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
7
|
7
17802-45G00-000 NUT |
17802-45G00-000 |
from US $1.99 |
||
|
8
|
8
17760-26J00-000 SHIELD,RADIATOR HEAT |
17760-26J00-000 |
from US $64.80 |
||
|
9
|
9
09320-10063-000 CUSHION |
09320-10063-000 |
from US $4.71 |
||
|
10
|
10
09116-06167-000 BOLT(6X20)Bolt (6x20) |
09116-06167-000 |
from US $1.37 |
||
|
11
|
11
09180-06310-000 SPACER(6.5X10X10)Spacer (6.8x10x10) |
09180-06310-000 |
from US $1.67 |
||
|
12
|
12
17740-10G00-000 BRACKET,RADIATOR |
17740-10G00-000 |
from US $9.16 |
||
|
13
|
13
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
14
|
14
17718-26J00-000 PLUG,DRAIN |
17718-26J00-000 |
from US $4.27 |
||
|
15
|
15
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
16
|
16
17802-14F00-000 NUT,RADIATOR FAN |
17802-14F00-000 |
from US $1.99 |
||
