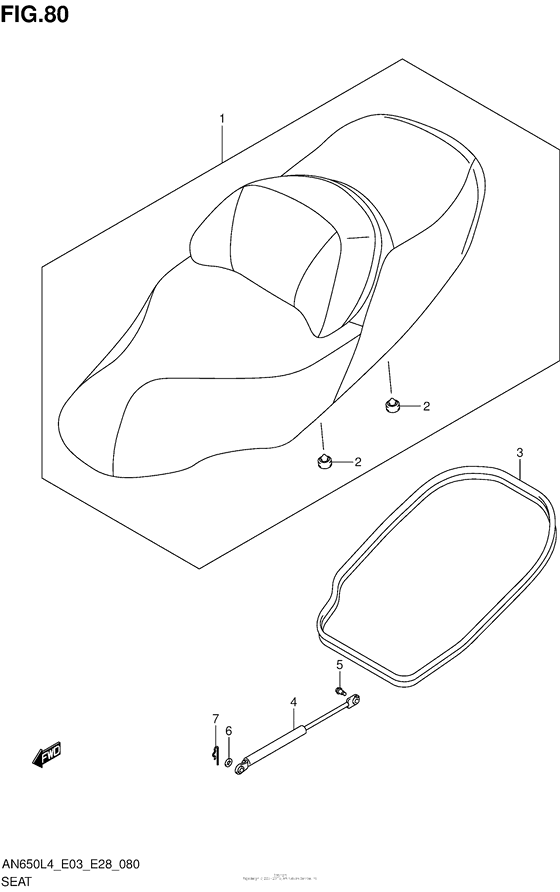

Seat (An650L4 E03) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2014
- Model code
- AN650L4
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45100-26J01-AF4
SEAT ASSY
|
45100-26J01-AF4 |
— | ||
| replacements | |||||
|
1
|
1
45100-26J02-AF4
SEAT ASSY
|
45100-26J02-AF4 |
— | ||
|
1
|
1
45100-26J03-AF4
Seat Assy
|
45100-26J03-AF4 |
— | ||
|
1
|
1
45100-26J04-AF4 Seat Assy |
45100-26J04-AF4 |
from US $978.56 |
||
|
2
|
2
09321-10002-000 CUSHION(11.5X22X20)Cushion |
09321-10002-000 |
from US $1.52 |
||
|
3
|
3
45211-26J00-000 MOLDING,SEAT |
45211-26J00-000 |
from US $29.44 |
||
|
4
|
4
45270-26J00-000 DAMPER ASSY,SEAT |
45270-26J00-000 |
from US $71.76 |
||
|
5
|
5
09111-06112-000 BOLT(6X18.6) |
09111-06112-000 |
from US $3.45 |
||
|
6
|
6
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
7
|
7
09385-08003-000 SNAPCrip, damper |
09385-08003-000 |
from US $1.28 |
||
