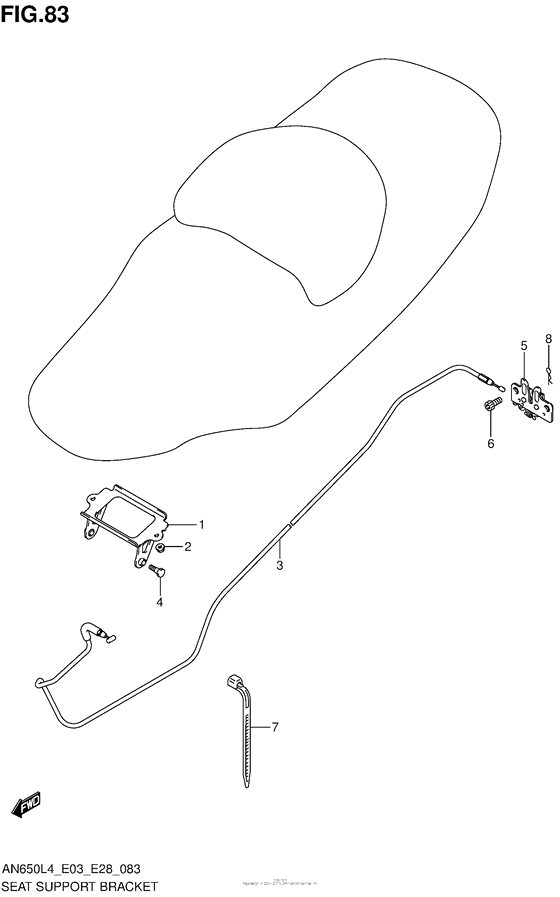

Seat Support Bracket Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2014
- Model code
- AN650L4
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45240-26J00-000
Bracket,seat hinge
|
45240-26J00-000 |
— | ||
| replacement | |||||
|
1
|
1
45240-26J01-000 BRACKET,SEAT HINGE |
45240-26J01-000 |
from US $26.86 |
||
|
2
|
2
08319-3106A-000 NUT |
08319-3106A-000 |
from US $1.44 |
||
|
3
|
3
45280-26J00-000
Cable,seat lock
|
45280-26J00-000 |
— | ||
| replacement | |||||
|
3
|
3
45280-26J01-000 CABLE,SEAT LOCK |
45280-26J01-000 |
from US $27.23 |
||
|
4
|
4
09111-06068-000 BOLT(6X18.5)Bolt, front (6x18.5) |
09111-06068-000 |
from US $2.89 |
||
|
5
|
5
45700-14FB2-000 BRACKET,STRIKER SUPPORTBracket, striker support |
45700-14FB2-000 |
from US $37.24 |
||
|
6
|
6
07130-0612A-000 BOLT |
07130-0612A-000 |
from US $0.96 |
||
|
7
|
7
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
|
8
|
8
09385-05004-000 PIN,SNAP |
09385-05004-000 |
from US $0.91 |
||
