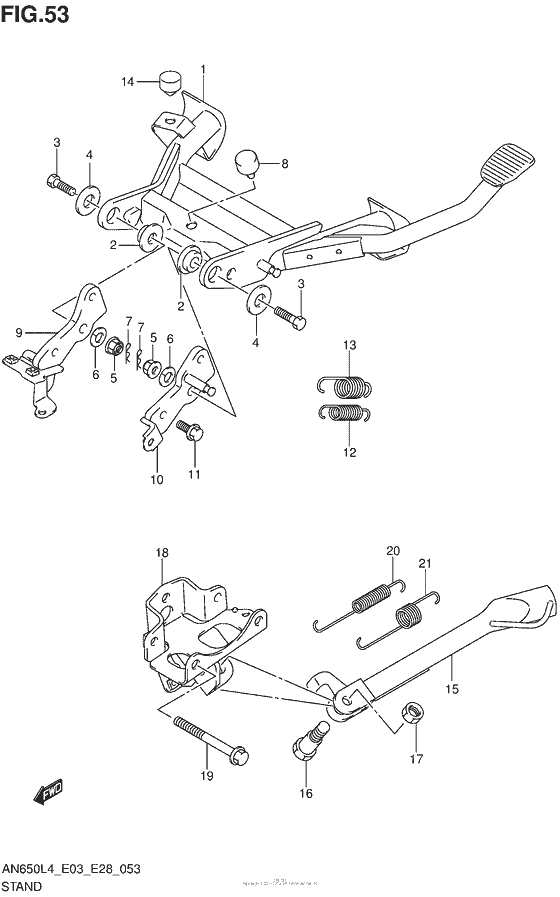

Stand Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2014
- Model code
- AN650L4
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42100-26J00-000 STAND,CTR |
42100-26J00-000 |
from US $156.77 |
||
|
2
|
2
42253-10G01-000 SPACER,CTR STAND |
42253-10G01-000 |
from US $5.78 |
||
|
3
|
3
09101-10036-000 BOLT(10X35) |
09101-10036-000 |
from US $7.21 |
||
|
4
|
4
09160-10126-000 WASHER(10.5X24X1.6) |
09160-10126-000 |
from US $3.35 |
||
|
5
|
5
42321-03FK0-000 NUT,PROP STAND |
42321-03FK0-000 |
from US $2.29 |
||
|
6
|
6
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
7
|
7
09385-10005-000 CLIPClip |
09385-10005-000 |
from US $2.28 |
||
|
8
|
8
09321-10036-000 CUSHION |
09321-10036-000 |
from US $9.03 |
||
|
9
|
9
42270-26J00-000 BRACKET,CENTER STAND,R |
42270-26J00-000 |
US $19.60 |
||
|
10
|
10
42280-10G11-000
Bracket,center stand,l
|
42280-10G11-000 |
— | ||
| replacement | |||||
|
10
|
10
42280-10G12-000 BRACKET COMP,CENTER STAND,L |
42280-10G12-000 |
from US $18.18 |
||
|
11
|
11
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
12
|
12
09443-14057-000 SPRING |
09443-14057-000 |
from US $12.84 |
||
|
13
|
13
09443-22009-000 SPRING |
09443-22009-000 |
from US $12.84 |
||
|
14
|
14
42272-26J00-000 CUSHION,CTR STAND,R |
42272-26J00-000 |
US $5.74 |
||
|
15
|
15
42310-26J00-000 STAND,PROP |
42310-26J00-000 |
from US $47.10 |
||
|
16
|
16
09111-10058-000 BOLT(10X37.5) |
09111-10058-000 |
from US $2.72 |
||
|
17
|
17
42321-03FK0-000 NUT,PROP STAND |
42321-03FK0-000 |
from US $2.29 |
||
|
18
|
18
42330-26J10-000 BRACKET,PROP STAND |
42330-26J10-000 |
from US $78.38 |
||
|
19
|
19
01550-0875A-000 BOLT |
01550-0875A-000 |
from US $1.60 |
||
|
20
|
20
09443-12050-000 SPRING |
09443-12050-000 |
from US $13.75 |
||
|
21
|
21
42422-26J00-000 SPRING,PROP STAND OUTER |
42422-26J00-000 |
from US $6.48 |
||
