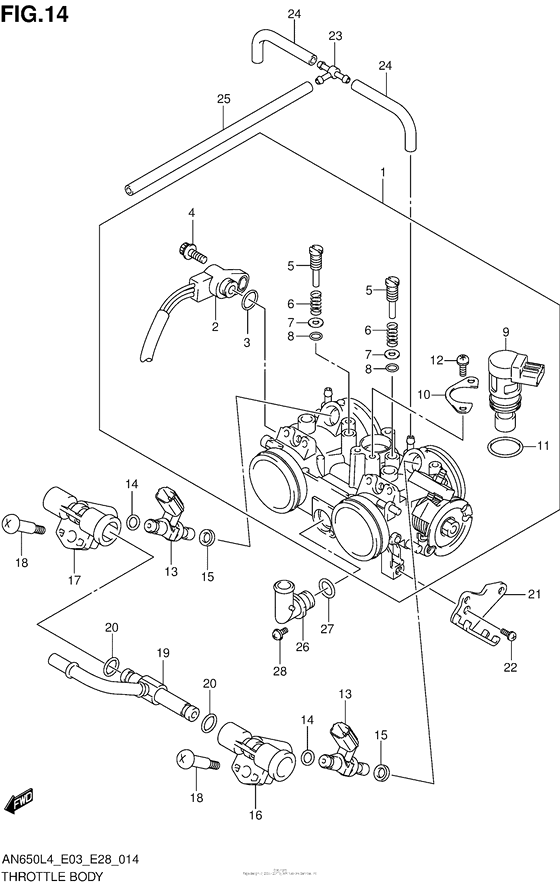

Throttle Body (An650Zl4 E28) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2014
- Model code
- AN650L4
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13406-26J00-000 BODY ASSY,THROTTLE |
13406-26J00-000 |
from US $665.28 |
||
|
2
|
2
13580-40F21-000 SENSOR ASSY,THROTTLE NO.1 |
13580-40F21-000 |
US $235.33 |
||
| replacement | |||||
|
2
|
2
13580-40F22-000 Sensor Atsushi, Throttle No. 1 |
13580-40F22-000 |
from US $91.96 |
||
|
3
|
3
13575-40F00-000 O RING |
13575-40F00-000 |
from US $1.60 |
||
|
4
|
4
13605-40F00-000 SCREW |
13605-40F00-000 |
from US $2.13 |
||
|
5
|
5
13269-18G00-000 SCREW,AIR ADJUSTAdjust screw |
13269-18G00-000 |
from US $5.59 |
||
|
6
|
6
13271-43E00-000 SPRING |
13271-43E00-000 |
US $2.24 |
||
|
7
|
7
13291-26E00-000 WASHER |
13291-26E00-000 |
from US $1.60 |
||
|
8
|
8
13295-26E00-000 O RING |
13295-26E00-000 |
from US $1.76 |
||
|
9
|
9
18117-26J00-000
Valve assy, isc
|
18117-26J00-000 |
— | ||
| replacement | |||||
|
9
|
9
18117-15H12-000 VALVE ASSY,ISC |
18117-15H12-000 |
from US $220.40 |
||
|
10
|
10
13428-15H00-000 PLATE,ISC VALVEPlate, isc valve |
13428-15H00-000 |
from US $15.53 |
||
|
11
|
11
18119-05H00-000 O RING |
18119-05H00-000 |
from US $1.91 |
||
|
12
|
12
13605-15H00-000 SCREW |
13605-15H00-000 |
from US $3.35 |
||
|
13
|
13
15710-26J00-000 INJECTOR ASSY |
15710-26J00-000 |
from US $178.11 |
||
|
14
|
14
15721-26J00-000 O RING |
15721-26J00-000 |
from US $5.41 |
||
|
15
|
15
15722-21H00-000 RING,SEAL |
15722-21H00-000 |
from US $4.80 |
||
|
16
|
16
13471-26J00-000 JOINT |
13471-26J00-000 |
from US $18.36 |
||
|
17
|
17
13471-26J10-000 JOINT |
13471-26J10-000 |
from US $18.36 |
||
|
18
|
18
13601-35F00-000 SCREW |
13601-35F00-000 |
from US $4.71 |
||
|
19
|
19
13473-10G00-000 FUEL,PIPE |
13473-10G00-000 |
US $55.57 |
||
|
20
|
20
15721-24F00-000 O RING |
15721-24F00-000 |
from US $4.41 |
||
|
21
|
21
13565-10G20-000 PLATE |
13565-10G20-000 |
US $24.29 |
||
|
22
|
22
13601-10G00-000 SCREW |
13601-10G00-000 |
US $1.91 |
||
|
23
|
23
13471-24F30-000 JOINTJoint |
13471-24F30-000 |
from US $8.50 |
||
|
24
|
24
13683-10G00-000 HOSE |
13683-10G00-000 |
US $6.96 |
||
|
25
|
25
13683-10G10-000 HOSE(3X7X220) |
13683-10G10-000 |
from US $6.15 |
||
|
26
|
26
13455-10G00-000 JOINT |
13455-10G00-000 |
from US $16.16 |
||
|
27
|
27
13278-10G10-000 O RING |
13278-10G10-000 |
US $2.13 |
||
|
28
|
28
13602-10G00-000 SCREW |
13602-10G00-000 |
US $1.91 |
||
