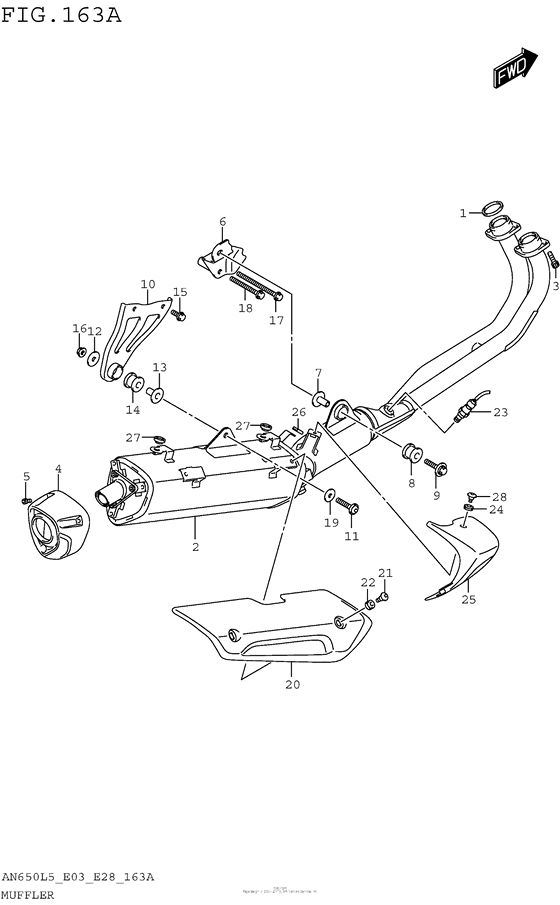

Muffler Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2015
- Model code
- AN650L5
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14181-22D01-000 GASKET,EXHAUST PIPE |
14181-22D01-000 |
from US $7.04 |
||
|
2
|
2
14305-26J31-H01 MUFFLER |
14305-26J31-H01 |
from US $1,186.80 |
||
|
3
|
3
07130-0825A-000 BOLT |
07130-0825A-000 |
from US $3.55 |
||
|
4
|
4
14790-26J00-000 COVER,MUFFLER RR |
14790-26J00-000 |
from US $43.42 |
||
|
5
|
5
09106-06078-000 BOLT(6X15)Bolt (6x15) |
09106-06078-000 |
from US $3.83 |
||
|
6
|
6
14410-26J00-000 BRACKET,MUFFLER SUPPORT FR |
14410-26J00-000 |
from US $21.71 |
||
|
7
|
7
09180-08156-000 SPACER(8.6X12X27.1) |
09180-08156-000 |
from US $2.56 |
||
|
8
|
8
09320-12085-000 CUSHION |
09320-12085-000 |
from US $9.80 |
||
|
9
|
9
09116-08134-000 BOLT(8X45) |
09116-08134-000 |
from US $2.28 |
||
|
10
|
10
14470-10G20-000 BRACKET,MUFFLER SUPPORT RR |
14470-10G20-000 |
from US $24.66 |
||
|
11
|
11
09106-08195-000 BOLT(8X45) |
09106-08195-000 |
from US $4.73 |
||
|
12
|
12
09160-08146-000 WASHER(8.5X33X1.5)Washer, muffler support |
09160-08146-000 |
from US $1.52 |
||
|
13
|
13
09180-08156-000 SPACER(8.6X12X27.1) |
09180-08156-000 |
from US $2.56 |
||
|
14
|
14
09320-12085-000 CUSHION |
09320-12085-000 |
from US $9.80 |
||
|
15
|
15
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
16
|
16
08361-2508A-000 NUT |
08361-2508A-000 |
from US $2.63 |
||
|
17
|
17
09103-10063-000 BOLT(10X115)Bolt, muffler bracket & cvt |
09103-10063-000 |
from US $6.69 |
||
|
18
|
18
01550-0880A-000 BOLT |
01550-0880A-000 |
from US $1.46 |
||
|
19
|
19
09160-08157-000 WASHER(8.5X28X1.6) |
09160-08157-000 |
from US $2.33 |
||
|
20
|
20
14781-26J00-000 COVER,MUFFLER |
14781-26J00-000 |
from US $125.86 |
||
|
21
|
21
09139-06126-000 SCREW(6X20)Screw, brace |
09139-06126-000 |
from US $1.82 |
||
|
22
|
22
09320-08070-000 CUSHION |
09320-08070-000 |
from US $9.36 |
||
|
23
|
23
18213-23H10-000 SENSOR,OXYGEN |
18213-23H10-000 |
from US $242.88 |
||
|
24
|
24
09320-08066-000 CUSHION |
09320-08066-000 |
from US $4.42 |
||
|
25
|
25
14770-26J00-000 COVER,MUFFLER FR |
14770-26J00-000 |
from US $137.63 |
||
|
26
|
26
14795-10FA0-000 GROMMET |
14795-10FA0-000 |
from US $2.43 |
||
|
27
|
27
09321-10018-000 CUSHION |
09321-10018-000 |
from US $2.24 |
||
|
28
|
28
09139-06124-000 SCREW(6X12) |
09139-06124-000 |
from US $3.20 |
