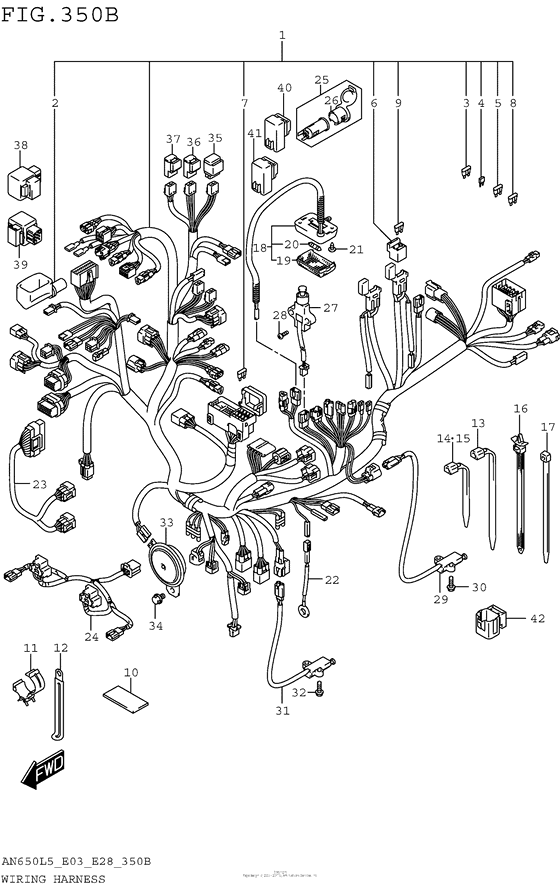

Wiring Harness (An650L5 E33) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2015
- Model code
- AN650L5
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-26J20-000
HARNESS,WIRING
|
36610-26J20-000 |
— | ||
| replacement | |||||
|
1
|
1
36610-26J21-000 HARNESS,WIRING |
36610-26J21-000 |
US $792 |
||
|
2
|
2
36618-41G00-000 COVER,CONNECTOR |
36618-41G00-000 |
US $4.75 |
||
|
3
|
3
09481-03502-000 FUSE(3A) |
09481-03502-000 |
from US $1.91 |
||
|
4
|
4
09481-10501-000 FUSE(10A) |
09481-10501-000 |
from US $1.08 |
||
|
5
|
5
09481-15501-000 FUSE(15A) |
09481-15501-000 |
from US $1.93 |
||
|
6
|
6
36742-45G00-000 HOLDER |
36742-45G00-000 |
from US $12.70 |
||
|
7
|
7
09481-15501-000 FUSE(15A) |
09481-15501-000 |
from US $1.93 |
||
|
8
|
8
09481-20501-000 FUSE(20A) |
09481-20501-000 |
from US $2.28 |
||
|
9
|
9
09481-40101-000 FUSE(40A) |
09481-40101-000 |
from US $5.76 |
||
|
10
|
10
36920-08D00-000 PROTECTOR(30X60X3)Protector (30x60x3) |
36920-08D00-000 |
US $1.44 |
||
|
11
|
11
09403-30403-000 CLAMP |
09403-30403-000 |
US $21.30 |
||
|
12
|
12
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire |
09404-06429-000 |
from US $1.52 |
||
|
13
|
13
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
14
|
14
09407-19401-000 CLAMP(L:190) |
09407-19401-000 |
from US $2.33 |
||
|
15
|
15
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
|
16
|
16
09407-11402-000 CLAMP(L:90) |
09407-11402-000 |
from US $1.75 |
||
| replacement | |||||
|
16
|
16
09407-17402-000 CLAMP |
09407-17402-000 |
from US $1.98 |
||
|
17
|
17
09407-14407-000 CLAMP(L:145)Band |
09407-14407-000 |
from US $2.08 |
||
|
18
|
18
36210-10G00-000 LAMP ASSY,TRUNK BOX |
36210-10G00-000 |
from US $46.74 |
||
|
19
|
19
36212-79001-000 LENS,ROOM LAMPLens, room lamp |
36212-79001-000 |
from US $6.32 |
||
|
20
|
20
09471-12073-000 BULB(12V,5W) |
09471-12073-000 |
from US $2.31 |
||
|
21
|
21
03541-0412A-000 SCREWScrew, speedometer |
03541-0412A-000 |
from US $0.63 |
||
|
22
|
22
36851-26J00-000
WIRE,OIL PRESSURE SWITCH LEAD
|
36851-26J00-000 |
— | ||
| replacements | |||||
|
22
|
22
36851-26J01-000
WIRE,OIL PRESSURE SWITCH LEAD
|
36851-26J01-000 |
— | ||
|
22
|
22
36851-26J02-000 Wire,oil Pressure Switch Lead |
36851-26J02-000 |
US $5.96 |
||
|
23
|
23
36620-26J00-000 HARNESS,WIRING NO.2 |
36620-26J00-000 |
from US $120.34 |
||
|
24
|
24
36856-26J00-000 WIRE,HEADLAMP LEAD |
36856-26J00-000 |
from US $47.10 |
||
|
25
|
25
39410-49F00-P4Z TERMINAL,POWER SOURCETerminal, power source (12v,60 |
39410-49F00-P4Z |
from US $23.74 |
||
|
26
|
26
39441-49F00-P4Z COVER |
39441-49F00-P4Z |
US $6.92 |
||
|
27
|
27
37980-14F00-000 SWITCH ASSY,TRUNK BOX LAMPSwitch assy, trank box lamp |
37980-14F00-000 |
from US $46.74 |
||
|
28
|
28
02112-0516A-000 SCREW |
02112-0516A-000 |
from US $0.77 |
||
|
29
|
29
37840-10G00-000
SWITCH ASSY,CTR STAND
|
37840-10G00-000 |
— | ||
| replacement | |||||
|
29
|
29
37840-10G01-000 Switch Assy,side Stand |
37840-10G01-000 |
US $75.68 |
||
|
30
|
30
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
31
|
31
37840-20E00-000
SWITCH ASSY,SIDE STAND
|
37840-20E00-000 |
— | ||
| replacement | |||||
|
31
|
31
37840-20E01-000 Switch Assy,side Stand |
37840-20E01-000 |
US $88.88 |
||
|
32
|
32
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
33
|
33
38500-26J00-000 HORN ASSY |
38500-26J00-000 |
from US $46.37 |
||
|
34
|
34
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.91 |
||
|
35
|
35
38740-38B00-000 RELAY ASSYRelay assy, fan motor |
38740-38B00-000 |
from US $32.94 |
||
|
36
|
36
38740-26E00-000
RELAY ASSY
|
38740-26E00-000 |
— | ||
| replacement | |||||
|
36
|
36
38740-26E01-000 Relay Assy,fuel Pump |
38740-26E01-000 |
US $21.53 |
||
|
37
|
37
38740-26E00-000
RELAY ASSY
|
38740-26E00-000 |
— | ||
| replacement | |||||
|
37
|
37
38740-26E01-000 Relay Assy,fuel Pump |
38740-26E01-000 |
US $21.53 |
||
|
38
|
38
38750-03G00-000 RELAY ASSY,DRIVE |
38750-03G00-000 |
from US $80.96 |
||
|
39
|
39
38750-10G00-000 RELAY ASSY,SCREEN |
38750-10G00-000 |
US $80.96 |
||
|
40
|
40
38740-04J00-000 RELAY ASSY,HEADLAMP |
38740-04J00-000 |
from US $21.53 |
||
|
41
|
41
38740-26E00-000
RELAY ASSY
|
38740-26E00-000 |
— | ||
| replacement | |||||
|
41
|
41
38740-26E01-000 Relay Assy,fuel Pump |
38740-26E01-000 |
US $21.53 |
||
|
42
|
42
36654-06J40-000 CAP,TS |
36654-06J40-000 |
from US $11.08 |
||
