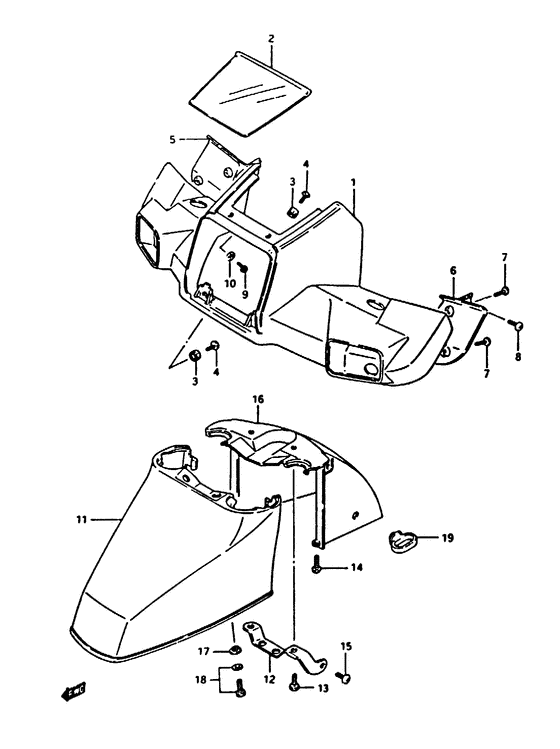

Headlamp housing Diagram Suzuki CP50 Shoot
- Year
- 1995
- Model code
- CP50CHFS S
- Engine Capacity
- 50
- Model
- CP50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51811-03A10-00J
Housing, headlamp (red)
Housing, headlamp (red); |
51811-03A10-00J |
— | ||
|
1
|
1
51811-03A10-22R
Housing, headlamp (white)
Housing, headlamp (white); |
51811-03A10-22R |
— | ||
|
1
|
1
51811-03A10-04Y
Housing, headlamp (blue)
Housing, headlamp (blue); |
51811-03A10-04Y |
— | ||
|
1
|
1
51811-03A10-019
Housing, headlamp (black)
Housing, headlamp (black); |
51811-03A10-019 |
— | ||
|
1
|
1
51811-03A10-07P
Housing, headlamp (red)
Housing, headlamp (red); |
51811-03A10-07P |
— | ||
|
1
|
1
51811-03A10-58P
Housing, headlamp (black) 0240
Housing, headlamp (black) 0240 792; |
51811-03A10-58P |
— | ||
|
2A
|
2A
94611-03A10-000
Visor, meter
Visor, meter; |
94611-03A10-000 |
— | ||
|
3
|
3
51825-03A00-000
Nut, housing headlamp
Nut, housing headlamp; |
51825-03A00-000 |
— | ||
|
4
|
4
03541-04125-000
Screw
|
03541-04125-000 |
— | ||
| replacements | |||||
|
4
|
4
03541-0412B-000 SCREWScrew, plate |
03541-0412B-000 |
from US $0.80 |
||
|
4
|
4
03541-0412A-000 SCREWScrew, speedometer |
03541-0412A-000 |
from US $0.80 |
||
|
5A
|
5A
51841-03A10-19K
Cover, housing headlamp rh
|
51841-03A10-19K |
— | ||
|
6A
|
6A
51842-03A10-19K
Cover, housing headlamp lh
|
51842-03A10-19K |
— | ||
|
7
|
7
03541-04125-000
Screw
|
03541-04125-000 |
— | ||
| replacements | |||||
|
7
|
7
03541-0412B-000 SCREWScrew, plate |
03541-0412B-000 |
from US $0.80 |
||
|
7
|
7
03541-0412A-000 SCREWScrew, speedometer |
03541-0412A-000 |
from US $0.80 |
||
|
8A
|
8A
02112-15255-000
Screw m5x25 din 7985/n
|
02112-15255-000 |
— | ||
|
9
|
9
03241-04065-000
Screw
|
03241-04065-000 |
— | ||
|
10
|
10
08322-21065-000
Washer
|
08322-21065-000 |
— | ||
| replacement | |||||
|
10
|
10
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
11
|
11
53181-03A10-00J
Body, fender front (red)
Body, fender front (red); P02, p16, p18, p22, p41, p25 |
53181-03A10-00J |
— | ||
|
11
|
11
53181-03A10-22R
Body, fender front (white)
Body, fender front (white); P02, p16, p18, p22, p41, p25 |
53181-03A10-22R |
— | ||
|
11
|
11
53181-03A10-04Y
Body, fender front (blue)
Body, fender front (blue); P02, p16, p18, p22, p41, p25 |
53181-03A10-04Y |
— | ||
|
11
|
11
53181-03A10-019
Body, fender front (black)
Body, fender front (black); P02, p16, p18, p22, p41, p25 |
53181-03A10-019 |
— | ||
|
11
|
11
53181-03A10-07P
Body, fender front (red)
Body, fender front (red); P02, p16, p18, p22, p41, p25 |
53181-03A10-07P |
— | ||
|
11
|
11
53181-03A10-58P
Body, fender front (black) 024
Body, fender front (black) 0240 792; P02, p16, p18, p22, p41, p25 |
53181-03A10-58P |
— | ||
|
11
|
11
53181-03A30-00J
Body, fender front (red)
Body, fender front (red); P04, p39 |
53181-03A30-00J |
— | ||
|
11
|
11
53181-03A30-22R
Body, fender front (white)
Body, fender front (white); P04, p39 |
53181-03A30-22R |
— | ||
|
11
|
11
53181-03A30-04Y
Body, fender front (blue)
Body, fender front (blue); P04, p39 |
53181-03A30-04Y |
— | ||
|
11
|
11
53181-03A30-019
Body, fender front (black)
Body, fender front (black); P04, p39 |
53181-03A30-019 |
— | ||
|
11
|
11
53181-03A30-07P
Body, fender front (red)
Body, fender front (red); P04, p39 |
53181-03A30-07P |
— | ||
|
11
|
11
53181-03A30-58P
Body, fender front (black) 024
Body, fender front (black) 0240 792; P04, p39 |
53181-03A30-58P |
— | ||
|
12A
|
12A
53160-03A00-000
Brace, front fender
Brace, front fender; |
53160-03A00-000 |
— | ||
|
13A
|
13A
01104-06126-000
Bolt
|
01104-06126-000 |
— | ||
| replacement | |||||
|
13A
|
13A
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
|
14
|
14
03211-05166-000
Screw, l:16
|
03211-05166-000 |
— | ||
| replacement | |||||
|
14
|
14
03211-0516A-000 SCREW |
03211-0516A-000 |
US $0.80 |
||
|
15A
|
15A
02142-05125-000
Screw
|
02142-05125-000 |
— | ||
| replacement | |||||
|
15A
|
15A
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
16A
|
16A
53182-03A00-000
Body, front fender rear
|
53182-03A00-000 |
— | ||
|
17A
|
17A
09169-06032-000
Washer
Washer; |
09169-06032-000 |
— | ||
| replacement | |||||
|
17A
|
17A
09169-06071-000 WASHERWasher, rr side Washer; |
09169-06071-000 |
from US $0.96 |
||
|
18A
|
18A
01134-06166-000
Bolt
|
01134-06166-000 |
— | ||
| replacements | |||||
|
18A
|
18A
01570-0616B-000 Bolt |
01570-0616B-000 |
from US $0.80 |
||
|
18A
|
18A
01570-0616A-000 Bolt |
01570-0616A-000 |
from US $0.80 |
||
|
19
|
19
58621-12900-000
Guide, cable
Guide, cable; |
58621-12900-000 |
— | ||
|
20
|
20
68271-02E70-16D
Emblem, fender front
For 07p |
68271-02E70-16D |
— | ||
|
20
|
20
68271-02E70-05F
Emblem, fender front
For 019, 58p |
68271-02E70-05F |
— | ||
