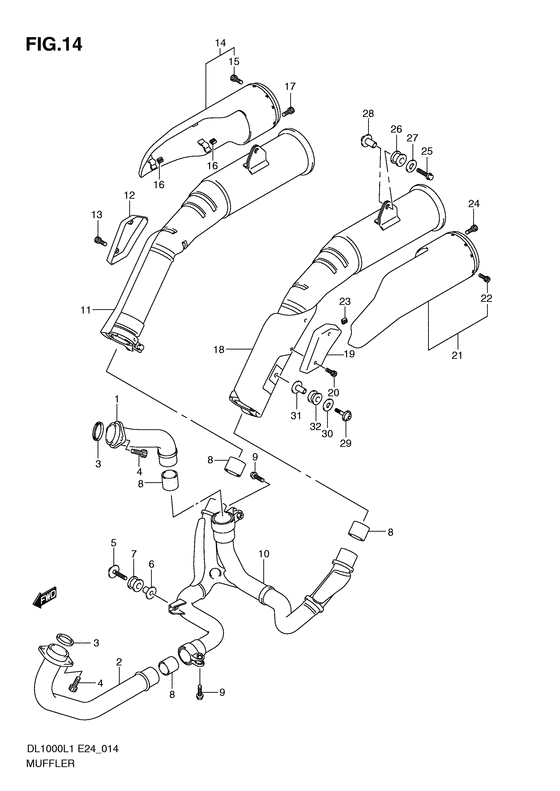

Muffler Diagram Suzuki DL1000 V-Strom
- Year
- 2011
- Model code
- DL1000L1(E24) L1
- Engine Capacity
- 1000
- Model
- DL1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14150-06G00-000 PIPE,EXHAUST,R |
14150-06G00-000 |
from US $91.63 |
||
|
2
|
2
14160-06G00-000 PIPE,EXHAUST,L |
14160-06G00-000 |
from US $179.58 |
||
|
3
|
3
14181-31D00-000 GASKET,EXHAUST PIPEGasket, exhaust pipe Gasket, exhaust pipe; |
14181-31D00-000 |
from US $7.57 |
||
|
4
|
4
09106-08165-000 BOLT(8X25)Bolt, exhaust pipe Bolt (8x25); |
09106-08165-000 |
from US $2.28 |
||
|
5
|
5
09118-08152-A05 BOLT(8X45)Bolt (8x45); |
09118-08152-A05 |
from US $8.38 |
||
|
6
|
6
09180-08152-000 SPACER(8.6X12X24.2)Spacer, muffler support Spacer (8.6x12x24.2); |
09180-08152-000 |
from US $2.74 |
||
|
7
|
7
09320-12048-000 CUSHION |
09320-12048-000 |
from US $4.64 |
||
|
8
|
8
14771-02F00-000 CONNECTOR,EXHAUST,RConnector, exhaust Connector, exhaust; |
14771-02F00-000 |
from US $20.52 |
||
|
9
|
9
09103-08392-000 BOLT(8X40)Bolt, connector Bolt (8x40); |
09103-08392-000 |
from US $1.38 |
||
|
10
|
10
14205-06G10-000 PIPE,EXHAUST CTR |
14205-06G10-000 |
from US $528 |
||
|
11
|
11
14305-06G11-H01 MUFFLER,R |
14305-06G11-H01 |
US $418.88 |
||
|
12
|
12
14186-06G00-000 PROTECTOR,MUFFLER COVER FR,RProtector, muffler cover rh; |
14186-06G00-000 |
from US $9.16 |
||
|
13
|
13
07130-0512B-000 BOLTBolt, pulser/clamp Screw, protector muffler; |
07130-0512B-000 |
from US $0.91 |
||
|
14
|
14
14780-06G01-000 COVER,MUFFLER,R |
14780-06G01-000 |
from US $242.88 |
||
|
15
|
15
09106-06068-000 BOLT(6X10)Bolt (6x10); |
09106-06068-000 |
from US $3.06 |
||
| replacement | |||||
|
15
|
15
09106-06076-000 BOLT(6X10)Bolt (6x10); |
09106-06076-000 |
from US $5.27 |
||
|
16
|
16
14795-06G00-000 GROMMET,MUFFLER COVER |
14795-06G00-000 |
from US $3.64 |
||
|
17
|
17
09106-06076-000 BOLT(6X10)Bolt (6x10); |
09106-06076-000 |
from US $5.27 |
||
|
18
|
18
14306-06G11-H01 MUFFLER,L |
14306-06G11-H01 |
from US $418.88 |
||
|
19
|
19
14196-06G00-000 PROTECTOR,MUFFLER COVER FR,LProtector, muffler cover lh; |
14196-06G00-000 |
from US $9.16 |
||
|
20
|
20
07130-0512B-000 BOLTBolt, pulser/clamp Screw, protector muffler; |
07130-0512B-000 |
from US $0.91 |
||
|
21
|
21
14790-06G01-000 COVER,MUFFLER,L |
14790-06G01-000 |
from US $242.88 |
||
|
22
|
22
09106-06068-000 BOLT(6X10)Bolt (6x10); |
09106-06068-000 |
from US $3.06 |
||
| replacement | |||||
|
22
|
22
09106-06076-000 BOLT(6X10)Bolt (6x10); |
09106-06076-000 |
from US $5.27 |
||
|
23
|
23
14795-06G00-000 GROMMET,MUFFLER COVER |
14795-06G00-000 |
from US $3.64 |
||
|
24
|
24
09106-06076-000 BOLT(6X10)Bolt (6x10); |
09106-06076-000 |
from US $5.27 |
||
|
25
|
25
09103-08358-000 BOLT(8X45)Bolt, muffler support Bolt (8x45); |
09103-08358-000 |
from US $1.44 |
||
|
26
|
26
09320-12049-000 CUSHION |
09320-12049-000 |
from US $6.54 |
||
|
27
|
27
09160-08146-000 WASHER(8.5X33X1.5)Washer, muffler support Washer (8.5x33x1.5); |
09160-08146-000 |
from US $1.52 |
||
|
28
|
28
14414-06G00-000 NUT,MUFFLER SUPPORTNut, muffler support Nut, muffler support; |
14414-06G00-000 |
from US $6.40 |
||
|
29
|
29
09106-08147-000 BOLT(8X30)Bolt, muffler support front Bolt (8x30); |
09106-08147-000 |
from US $2.43 |
||
|
30
|
30
09160-08134-000 WASHER(8.5X26X1.6)Washer, muffler support front Washer (8.5x26x1.6); |
09160-08134-000 |
from US $0.91 |
||
|
31
|
31
09180-08151-000 SPACER(8.6X12X17.5)Spacer, exhaust support Spacer (8.6x12x17.5); |
09180-08151-000 |
from US $2.89 |
||
|
32
|
32
09320-12043-000 CUSHIONCushion, exhaust support |
09320-12043-000 |
from US $7.45 |
||
