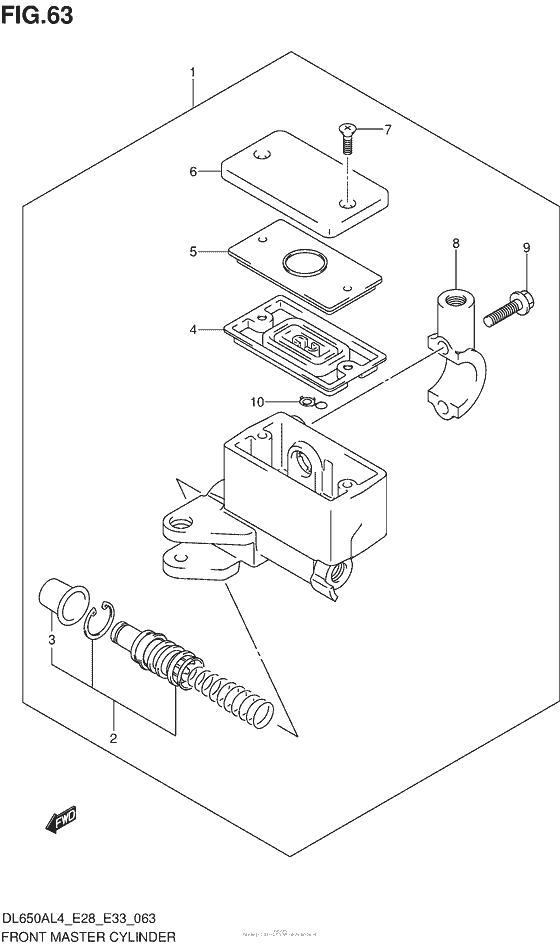

Front Master Cylinder Diagram Suzuki DL650 V-Strom
- Year
- 2014
- Model code
- DL650AL4 (2014)
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- DL650 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59600-10G30-000 CYLINDER ASSY,FR MASTER |
59600-10G30-000 |
from US $187.20 |
||
|
2
|
2
59600-45870-000 PISTON & CUP SET |
59600-45870-000 |
from US $32.68 |
||
|
3
|
3
59666-44300-000 BOOT |
59666-44300-000 |
from US $1.82 |
||
|
4
|
4
59667-49460-000 DIAPHRAGM |
59667-49460-000 |
from US $13.19 |
||
|
5
|
5
59668-41C00-000 PLATE,DIAPHRAGMPlate, diaphragm |
59668-41C00-000 |
from US $5.28 |
||
|
6
|
6
59669-10G00-000 CAP |
59669-10G00-000 |
from US $17.25 |
||
|
7
|
7
69689-49300-000 SCREWScrew, cap |
69689-49300-000 |
from US $1.52 |
||
|
8
|
8
59671-32F00-000 HOLDER |
59671-32F00-000 |
from US $10.49 |
||
|
9
|
9
59675-02FA0-000 BOLT(6X22) |
59675-02FA0-000 |
US $6.10 |
||
|
10
|
10
59664-32F00-000 PROTECTOR |
59664-32F00-000 |
from US $5.28 |
