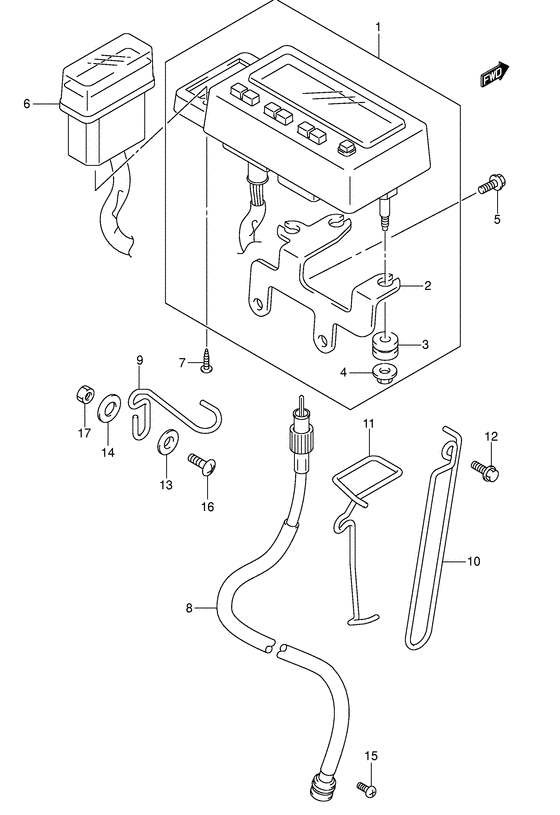

Speedometer (Model k5) Diagram Suzuki DR-Z400 DR-Z400S
- Year
- 2005
- Model code
- DR-Z400SK5(E2) K5
- Engine Capacity
- 400
- Model
- DR-Z400S
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
34100-29F21-000
SPEEDOMETER ASSY
Speedometer assy (mile/kilo); |
34100-29F21-000 |
— | ||
replacement | |||||
1
|
1
34100-29F22-000 Speedometer AssySpeedometer assy (mile/kilo); |
34100-29F22-000 |
US $1,147.52 |
||
1
|
1
34100-29F01-000
SPEEDOMETER ASSY
Speedometer assy (kilo); E19,e54 |
34100-29F01-000 |
— | ||
2
|
2
34950-29F00-000 BRACKET |
34950-29F00-000 |
from US $22.82 |
||
3
|
3
34996-43410-000 CUSHION,METER |
34996-43410-000 |
from US $1.60 |
||
4
|
4
08316-1005A-000 NUT |
08316-1005A-000 |
from US $0.80 |
||
5
|
5
01550-0616B-000 BOLTBolt, speedometer; |
01550-0616B-000 |
from US $0.76 |
||
6
|
6
36380-29F00-000 BOX ASSY,PILOT LAMP |
36380-29F00-000 |
from US $139.10 |
||
7
|
7
03511-0420B-000 SCREW |
03511-0420B-000 |
from US $2.10 |
||
8
|
8
34910-32E00-000 CABLE ASSY,SPEEDOMETERCable assy, speedometer |
34910-32E00-000 |
from US $23.76 |
||
9
|
9
34938-03D22-000 GUIDE,SPEEDOMETER CABLEGuide, meter cable no.1 |
34938-03D22-000 |
from US $5.59 |
||
10
|
10
34938-14D30-000 GUIDE,METER CABLE NO.2Guide, meter cable no.2 Guide, meter cable no.2; |
34938-14D30-000 |
from US $6.51 |
||
11
|
11
34938-29F10-000 GUIDE,SPEEDOMETER CABLE NO.3Guide, meter cable no.3 |
34938-29F10-000 |
from US $6.92 |
||
12
|
12
09116-06167-000 BOLT(6X20)Bolt (6x20) Bolt, meter cable no.2; |
09116-06167-000 |
from US $1.37 |
||
13
|
13
09160-06109-000 WASHER(6.5X18X1.6)Washer, meter cable no.1; |
09160-06109-000 |
from US $0.80 |
||
14
|
14
09169-06054-000
Washer
Washer, meter cable no.1; |
09169-06054-000 |
— | ||
replacement | |||||
14
|
14
09169-06053-000 WASHERWasher, meter cable no.1; |
09169-06053-000 |
from US $0.91 |
||
15
|
15
02112-0516B-000 SCREWScrew, meter cable; |
02112-0516B-000 |
from US $1.75 |
||
16
|
16
02142-0616B-000 SCREWScrew, hinge Screw, meter cable guide no.1; |
02142-0616B-000 |
from US $1.70 |
||
17
|
17
08310-0006B-000 NUTNut gear shift link rod Nut, meter cable no.1; |
08310-0006B-000 |
from US $0.76 |
