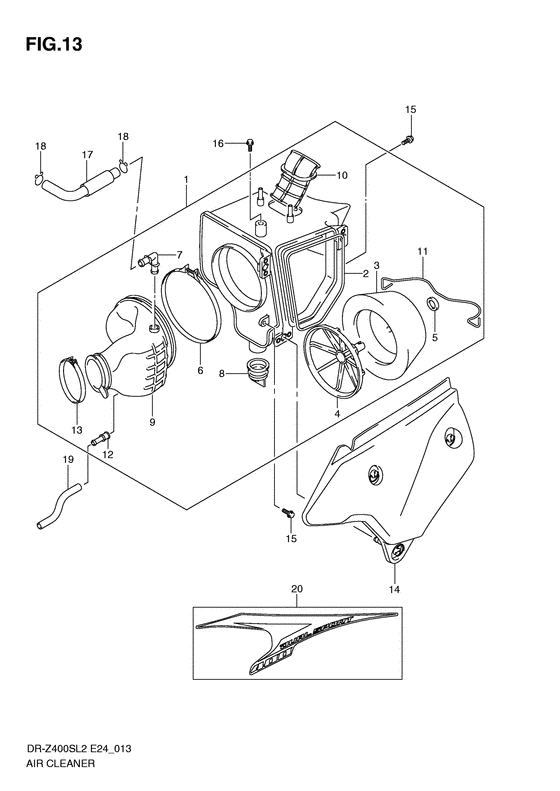

Air cleaner Diagram Suzuki DR-Z400 DR-Z400S
- Year
- 2012
- Model code
- DR-Z400SL2(E24) L2
- Engine Capacity
- 400
- Model
- DR-Z400S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13701-29FA1-000
CLEANER,AIR
|
13701-29FA1-000 |
— | ||
| replacement | |||||
|
1
|
1
13701-29FA2-000 CLEANER COMP,AIR |
13701-29FA2-000 |
US $314.64 |
||
|
2
|
2
13746-29F00-000 GASKET,AIR CLEANER |
13746-29F00-000 |
from US $3.31 |
||
|
3
|
3
13780-44E00-000 FILTER ASSYFilter, assy; |
13780-44E00-000 |
from US $49.28 |
||
|
4
|
4
13791-44E00-000 HOLDER,FILTER |
13791-44E00-000 |
from US $11.20 |
||
|
5
|
5
13796-44E00-000 SPACER |
13796-44E00-000 |
from US $1.92 |
||
|
6
|
6
13826-29F00-000 CLAMP |
13826-29F00-000 |
from US $5.76 |
||
|
7
|
7
13858-14D20-000 JOINTJoint, breather tube; |
13858-14D20-000 |
from US $7.36 |
||
|
8
|
8
13872-29F00-000 VALVE |
13872-29F00-000 |
from US $6.51 |
||
|
9
|
9
13881-29FA0-000 TUBE,OUTLET |
13881-29FA0-000 |
US $44 |
||
|
10
|
10
13891-29FA0-000 TUBE,INLET |
13891-29FA0-000 |
from US $18.58 |
||
|
11
|
11
13941-29F00-000 SPRING |
13941-29F00-000 |
from US $19.69 |
||
|
12
|
12
09367-08001-000 JOINTJoint, fuel hose |
09367-08001-000 |
from US $1.98 |
||
|
13
|
13
09402-64203-000 CLAMPClamp (carburetor side) |
09402-64203-000 |
from US $2.58 |
||
|
14
|
14
13740-29FB0-019
CAP,AIR CLEANER
Cap, air cleaner (black); |
13740-29FB0-019 |
— | ||
| replacement | |||||
|
14
|
14
13740-29FB1-019 CAP,AIR CLEANER(BLACK)Cap, air cleaner (black); |
13740-29FB1-019 |
from US $106.72 |
||
|
14
|
14
13740-29FB0-30H
CAP,AIR CLEANER
Cap, air cleaner (white); |
13740-29FB0-30H |
— | ||
| replacement | |||||
|
14
|
14
13740-29FB1-30H CAP,AIR CLEANER(WHITE)Cap, air cleaner (white); |
13740-29FB1-30H |
from US $106.72 |
||
|
15
|
15
01547-0616B-000 BOLT |
01547-0616B-000 |
from US $0.76 |
||
|
16
|
16
09111-06054-000 BOLT(6X14.6)Bolt (6x14.6); |
09111-06054-000 |
from US $5.03 |
||
|
17
|
17
13850-29FA1-000
TUBE,BREATHER
|
13850-29FA1-000 |
— | ||
| replacement | |||||
|
17
|
17
13850-29FA2-000 Tube,breather |
13850-29FA2-000 |
from US $9.38 |
||
|
18
|
18
09401-14101-000 CLIP |
09401-14101-000 |
from US $1.52 |
||
|
19
|
19
13697-29FA0-000 HOSE,SOLENOID VALVE |
13697-29FA0-000 |
US $5.67 |
||
|
20
|
20
68145-29FD0-HMC TAPE,AIR CLNR CAPTape, air clnr cap (silver/black); For 019 |
68145-29FD0-HMC |
from US $25.39 |
||
|
20
|
20
68145-29FD0-HMD TAPE,AIR CLNR CAPTape, air clnr cap (blue/white); For 30h |
68145-29FD0-HMD |
from US $19.14 |
||
