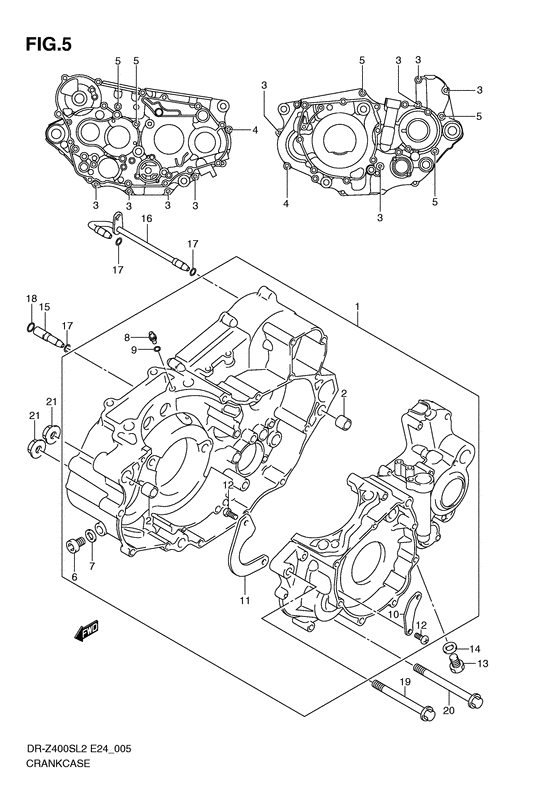

Crankcase Diagram Suzuki DR-Z400 DR-Z400S
- Year
- 2012
- Model code
- DR-Z400SL2(E24) L2
- Engine Capacity
- 400
- Model
- DR-Z400S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11301-29853-000
CRANKCASE SET
|
11301-29853-000 |
— | ||
| replacement | |||||
|
1
|
1
11301-29854-000 Crankcase Set |
11301-29854-000 |
US $836.25 |
||
|
2
|
2
04211-13189-000 PINPin; |
04211-13189-000 |
from US $1.19 |
||
|
3
|
3
01547-0640A-000 BOLT |
01547-0640A-000 |
from US $0.91 |
||
|
4
|
4
01547-0655A-000 BOLTBolt; |
01547-0655A-000 |
from US $0.82 |
||
|
5
|
5
01547-0670A-000 BOLTBolt; |
01547-0670A-000 |
from US $4.49 |
||
|
6
|
6
09248-10010-000 PLUG(10X10)Plug, oil gallery Plug; |
09248-10010-000 |
from US $1.98 |
||
|
7
|
7
09168-10002-000 GASKET(10X14X3.6)Gasket Gasket (10x14x3.6); |
09168-10002-000 |
from US $1.67 |
||
|
8
|
8
09493-80005-000 JET(8)Jet, pilot air (80); |
09493-80005-000 |
from US $11.20 |
||
|
9
|
9
09280-04004-000 O RING(D:1.2,ID:4)O ring, oil gallery jet O ring (d:1.2,id:4); |
09280-04004-000 |
from US $1.82 |
||
|
10
|
10
11323-29F00-000 SEPARATOR,CRANKCASE OIL NO.1Separator, oil no.1; |
11323-29F00-000 |
from US $1.51 |
||
|
11
|
11
11324-29F00-000 SEPARATOR,CRANKCASE OIL NO.2Separator, oil no.2; |
11324-29F00-000 |
from US $2.47 |
||
|
12
|
12
09125-06122-000 SCREW(6X12)Screw (6x12); |
09125-06122-000 |
from US $3.35 |
||
|
13
|
13
09247-12011-000 PLUG(12X20)Plug, oil drain |
09247-12011-000 |
from US $2.74 |
||
|
14
|
14
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket Gasket (12.1x16.2x3.7); |
09168-12002-000 |
from US $0.76 |
||
|
15
|
15
11451-29F00-000 PIPE,OIL INNER NO.1 |
11451-29F00-000 |
from US $10.49 |
||
|
16
|
16
11460-29F00-000 PIPE,T/M OIL INNER NO.2 |
11460-29F00-000 |
from US $37.54 |
||
|
17
|
17
09280-05004-000 O RING(D:1.9,ID:4.8)O ring (d:1.9,id:4.8) O ring (d:1.9,id:4.8); |
09280-05004-000 |
from US $1.92 |
||
|
18
|
18
09280-07004-000 O RING(D:1.9,ID:6.8)O ring (d:1.9,id:6.8); |
09280-07004-000 |
from US $1.28 |
||
|
19
|
19
18601-29F10-000
Bolt (10x90)
Bolt (10x90); |
18601-29F10-000 |
— | ||
| replacement | |||||
|
19
|
19
18601-29F11-000 BOLT,ENGINE MOUNTING L:90Bolt (10x90); |
18601-29F11-000 |
from US $7.03 |
||
|
20
|
20
09103-10063-000 BOLT(10X115)Bolt, muffler bracket & cvt Bolt (10x115); |
09103-10063-000 |
from US $10.03 |
||
|
21
|
21
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
