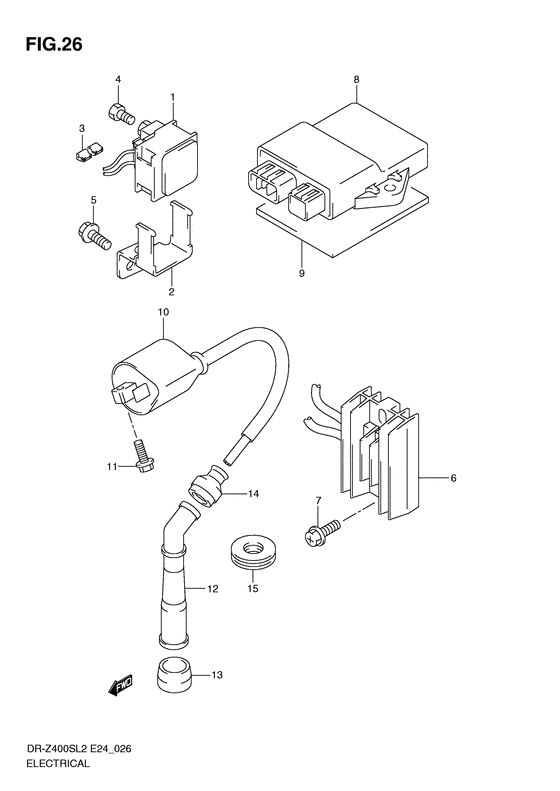

Electrical Diagram Suzuki DR-Z400 DR-Z400S
- Year
- 2012
- Model code
- DR-Z400SL2(E24) L2
- Engine Capacity
- 400
- Model
- DR-Z400S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31800-29F00-000 RELAY ASSY,STARTING MOTOR |
31800-29F00-000 |
from US $58.51 |
||
|
2
|
2
31811-29F00-000 BRACKET,STARTING MOTOR RELAYBracket, starting motor relay; |
31811-29F00-000 |
from US $3.35 |
||
|
3
|
3
31812-29F00-000 PROTECTOR,STARTING MOTOR LEADProtector, starting motor Protector, starting motor lead; |
31812-29F00-000 |
from US $2.65 |
||
|
4
|
4
09128-06013-000 SCREW(6X8)Screw Screw (6x8); |
09128-06013-000 |
from US $1.94 |
||
|
5
|
5
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
6
|
6
32800-29F00-000 Rectifier Assy |
32800-29F00-000 |
from US $146.40 |
||
|
7
|
7
02162-0620B-000 SCREWBolt, rectifier |
02162-0620B-000 |
from US $3.23 |
||
|
8
|
8
32900-29FA0-000 CDI UNIT |
32900-29FA0-000 |
US $584.32 |
||
|
9
|
9
33652-36000-000 CUSHION(30X50X3)Protector, cdi (30x50x3.0) Cushion, cdi unit; |
33652-36000-000 |
from US $1.35 |
||
|
10
|
10
33410-09F00-000 COIL ASSY,IGNITIONCoil assy, ignition |
33410-09F00-000 |
from US $60.04 |
||
|
11
|
11
01547-0616B-000 BOLT |
01547-0616B-000 |
from US $0.76 |
||
|
12
|
12
33510-48B10-000 Cap,spark plug |
33510-48B10-000 |
from US $18.24 |
||
|
13
|
13
33541-23E10-000 SEAL,SPARK PLUGSeal, spark plug cap; |
33541-23E10-000 |
from US $3.95 |
||
|
14
|
14
33542-38B00-000 SEAL,HIGH TENSION CORDSeal, hightension cord Seal, high tension cord; |
33542-38B00-000 |
from US $1.52 |
||
|
15
|
15
33543-33E01-000 COVER,SPARK PLUG CAP |
33543-33E01-000 |
from US $2.74 |
