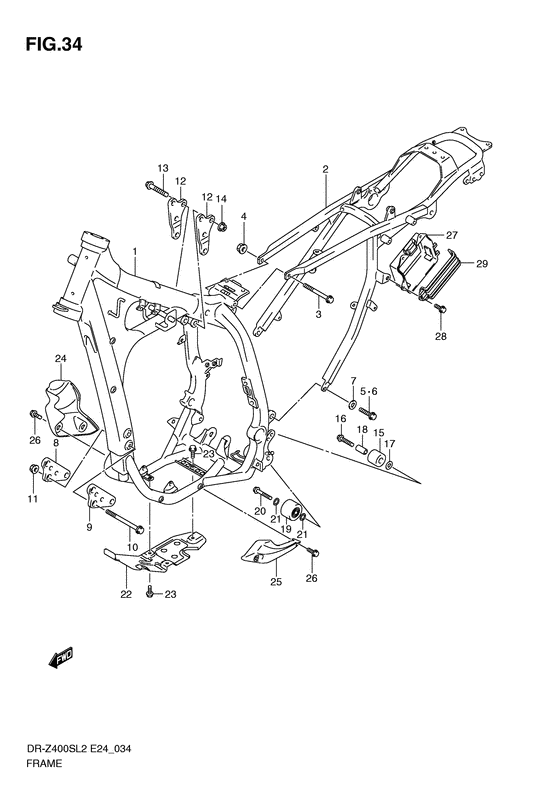

Frame Diagram Suzuki DR-Z400 DR-Z400S
- Year
- 2012
- Model code
- DR-Z400SL2(E24) L2
- Engine Capacity
- 400
- Model
- DR-Z400S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41100-29F60-YPT FRAME(GRAY)Frame (gray); |
41100-29F60-YPT |
US $2,787.28 |
||
| replacements | |||||
|
1
|
1
41100-29F90-YPT FRAME COMPFrame (gray); |
41100-29F90-YPT |
from US $1,940.16 |
||
|
1
|
1
41911-29F20-000 PLATE,ENG MTG FRONTFrame (gray); |
41911-29F20-000 |
from US $17.66 |
||
|
1
|
1
41911-29F30-000 PLATE,ENG MTG FRONT,LFrame (gray); |
41911-29F30-000 |
US $35.07 |
||
|
1
|
1
09103-08550-000 BOLT,ENG MTG,FRONTFrame (gray); |
09103-08550-000 |
from US $7.65 |
||
|
1
|
1
18601-29F11-000 BOLT,ENGINE MOUNTING L:90Frame (gray); |
18601-29F11-000 |
from US $7.03 |
||
|
2
|
2
41200-29F70-000 RAIL,SEAT |
41200-29F70-000 |
from US $770.88 |
||
|
3
|
3
09103-08098-000 BOLT(8X115)Bolt, engine mounting (8x115) Bolt (8x115); |
09103-08098-000 |
from US $5.27 |
||
|
4
|
4
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
||
|
5
|
5
09104-08035-000 BOLT(8X18)Bolt (8x18); |
09104-08035-000 |
from US $1.22 |
||
|
6
|
6
09103-08431-000 BOLT(8X20)Bolt (8x20); |
09103-08431-000 |
from US $4.54 |
||
|
7
|
7
09160-08120-000 WASHER(8.5X18X2)Washer (8.5x18x2); |
09160-08120-000 |
from US $3.47 |
||
|
8
|
8
41911-29F00-000 PLATE,ENG MTG FRPlate, engine mount front rh; |
41911-29F00-000 |
from US $27.05 |
||
|
9
|
9
41911-29F10-000 PLATE,ENG MTG FR,L |
41911-29F10-000 |
US $10.56 |
||
|
10
|
10
09103-08363-000 BOLT(8X90)Bolt (8x90); |
09103-08363-000 |
from US $8 |
||
|
11
|
11
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
||
|
12
|
12
41993-29F10-000 PLATE,HEAD MTG RR |
41993-29F10-000 |
from US $15.35 |
||
|
13
|
13
09103-08081-000 BOLT(8X50)Bolt, 8x50 Bolt (8x50); |
09103-08081-000 |
from US $5.07 |
||
|
14
|
14
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
||
|
15
|
15
43911-13E00-000 ROLLER,CHAIN CONTROL UPRRoller, chain control upper; |
43911-13E00-000 |
from US $13.90 |
||
|
16
|
16
09103-08083-000 BOLT(8X41)Bolt (8x41); |
09103-08083-000 |
from US $1.68 |
||
|
17
|
17
08211-08201-000 WASHERWasher |
08211-08201-000 |
from US $3.21 |
||
|
18
|
18
09180-08215-000 SPACER(8.6X12.2X26.5)Spacer (8.6x12.2x26.5); |
09180-08215-000 |
from US $6.70 |
||
|
19
|
19
43910-27C11-000 ROLLER,CHAINRoller, chain lower Roller, chain control; |
43910-27C11-000 |
from US $35.20 |
||
|
20
|
20
09103-08083-000 BOLT(8X41)Bolt (8x41); |
09103-08083-000 |
from US $1.68 |
||
|
21
|
21
09181-08111-000 SHIM(8X12X1)Shim (8x12x1); |
09181-08111-000 |
from US $1.52 |
||
|
22
|
22
42510-29F00-000 PROTECTOR,ENGINE |
42510-29F00-000 |
from US $66.61 |
||
|
23
|
23
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
24
|
24
42521-29F00-000 GUARD,WATER PUMP |
42521-29F00-000 |
from US $13.60 |
||
| replacement | |||||
|
24
|
24
42520-29810-000
WATER PUMP GUARD SET
|
42520-29810-000 |
— | ||
|
25
|
25
42531-29F00-000 GUARD,MAG COVER |
42531-29F00-000 |
US $13.60 |
||
| replacement | |||||
|
25
|
25
42530-29810-000 MAG COVER GUARD SET |
42530-29810-000 |
US $11.37 |
||
|
26
|
26
09111-08096-000 BOLT(8X16.5)Bolt (8x16.5); |
09111-08096-000 |
from US $1.07 |
||
|
27
|
27
41541-29F00-000 HOLDER,BATTERY |
41541-29F00-000 |
from US $33.30 |
||
|
28
|
28
09111-06072-000 BOLT(6X17.8)Bolt, protector Bolt (6x17.8); |
09111-06072-000 |
from US $1.52 |
||
|
29
|
29
41561-29F00-000 BAND,BATTERY HOLDERBand, battery holder; |
41561-29F00-000 |
from US $8.10 |
||
