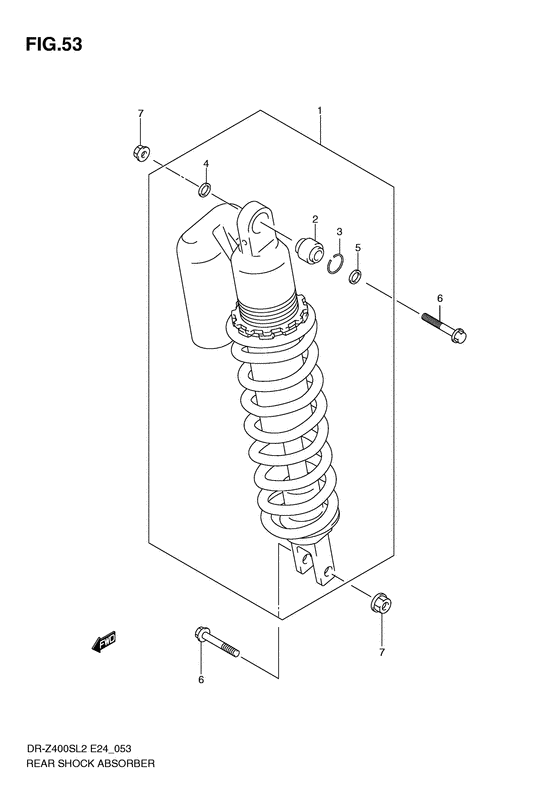

Rear shock absorber Diagram Suzuki DR-Z400 DR-Z400S
- Year
- 2012
- Model code
- DR-Z400SL2(E24) L2
- Engine Capacity
- 400
- Model
- DR-Z400S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62100-29F80-28W ABSORBER ASSY,RR SHOCK(WHITE)Absorber assy, rear shock (white) Absorber assy, rear shock (white); |
62100-29F80-28W |
US $1,750.96 |
||
|
2
|
2
62175-36E00-000 BEARING,RR SHOCK ABSORBERBearing (10x26x22) Bearing (10x26x22); |
62175-36E00-000 |
from US $33.60 |
||
|
3
|
3
62277-27C40-000 RING,STOPPER |
62277-27C40-000 |
from US $1.76 |
||
|
4
|
4
62226-36E00-000 SEAL,DUST UPR,RSeal, dust rh |
62226-36E00-000 |
from US $2.88 |
||
|
5
|
5
62226-36E10-000 SEAL,DUST UPR,LSeal, dust lh |
62226-36E10-000 |
from US $2.88 |
||
|
6
|
6
09103-10149-000 BOLT(10X47.5)Bolt, lower Bolt (10x47.5); |
09103-10149-000 |
from US $1.82 |
||
|
7
|
7
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
