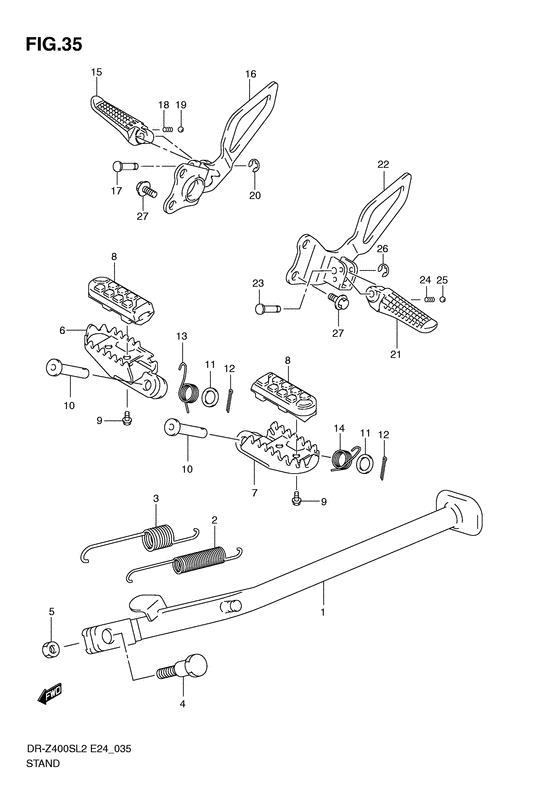

Stand Diagram Suzuki DR-Z400 DR-Z400S
- Year
- 2012
- Model code
- DR-Z400SL2(E24) L2
- Engine Capacity
- 400
- Model
- DR-Z400S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42310-44E00-000 STAND,PROPStand, propeller; |
42310-44E00-000 |
US $70.29 |
||
|
2
|
2
09443-12036-000 SPRINGSpring, inner |
09443-12036-000 |
from US $3.49 |
||
|
3
|
3
09443-19010-000 SPRINGSpring, outer |
09443-19010-000 |
from US $6.40 |
||
|
4
|
4
09111-10060-000 BOLT(10X33)Bolt (10x33); |
09111-10060-000 |
from US $6.58 |
||
|
5
|
5
42321-03FK0-000 NUT,PROP STAND |
42321-03FK0-000 |
from US $2.29 |
||
|
6
|
6
43550-29E01-000 FOOTREST,R |
43550-29E01-000 |
from US $30.80 |
||
|
7
|
7
43560-29E01-000 FOOTREST,L |
43560-29E01-000 |
from US $30.80 |
||
|
8
|
8
43530-29F00-000 RUBBER,FOOTREST |
43530-29F00-000 |
from US $12.59 |
||
|
9
|
9
01547-0510A-000 BoltBolt (l:80) |
01547-0510A-000 |
from US $3.47 |
||
|
10
|
10
09200-10019-000 PIN(10X41.5) |
09200-10019-000 |
from US $4.86 |
||
|
11
|
11
08322-0110B-000 WASHERWasher, knuckle end |
08322-0110B-000 |
from US $0.76 |
||
|
12
|
12
04111-2520A-000 PINCotter pin; |
04111-2520A-000 |
from US $0.80 |
||
|
13
|
13
09448-18030-000 SPRINGSpring, rh |
09448-18030-000 |
from US $2.24 |
||
|
14
|
14
09448-18029-000 SPRINGSpring, lh |
09448-18029-000 |
from US $2.24 |
||
|
15
|
15
43611-33E11-000 BAR,PILLION FOOTREST,RBar, pillion footrest rh |
43611-33E11-000 |
from US $27.42 |
||
|
16
|
16
43650-29F20-000 BRACKET,PILLION,R |
43650-29F20-000 |
from US $27.30 |
||
|
17
|
17
87259-85510-000 PIN |
87259-85510-000 |
from US $1.68 |
||
|
18
|
18
09440-05005-000 SPRING |
09440-05005-000 |
from US $1.06 |
||
|
19
|
19
06111-07004-000 BALL |
06111-07004-000 |
from US $0.76 |
||
|
20
|
20
08332-1104B-000 E RING |
08332-1104B-000 |
from US $0.80 |
||
| replacement | |||||
|
20
|
20
08332-1104A-000 E RING |
08332-1104A-000 |
from US $0.76 |
||
|
21
|
21
43621-33E11-000 BAR,PILLION FOOTREST,LBar, pillion footrest lh |
43621-33E11-000 |
from US $27.42 |
||
|
22
|
22
43750-29F00-000 BRACKET,PILLION,L |
43750-29F00-000 |
from US $25.52 |
||
|
23
|
23
87259-85510-000 PIN |
87259-85510-000 |
from US $1.68 |
||
|
24
|
24
09440-05005-000 SPRING |
09440-05005-000 |
from US $1.06 |
||
|
25
|
25
06111-07004-000 BALL |
06111-07004-000 |
from US $0.76 |
||
|
26
|
26
08332-1104B-000 E RING |
08332-1104B-000 |
from US $0.80 |
||
| replacement | |||||
|
26
|
26
08332-1104A-000 E RING |
08332-1104A-000 |
from US $0.76 |
||
|
27
|
27
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
