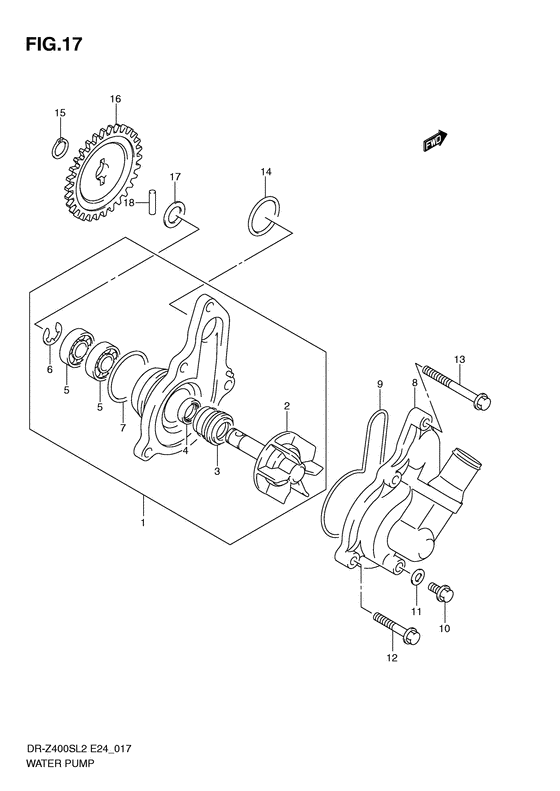

Water pump Diagram Suzuki DR-Z400 DR-Z400S
- Year
- 2012
- Model code
- DR-Z400SL2(E24) L2
- Engine Capacity
- 400
- Model
- DR-Z400S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-29F10-000 PUMP ASSY,WATER |
17400-29F10-000 |
from US $121.80 |
||
|
2
|
2
17491-29F10-000 IMPELLER SHAFTImpeller shaft |
17491-29F10-000 |
from US $26.68 |
||
|
3
|
3
17470-02F10-000
SEAL,MECHANICAL
Seal, water pump shaft mechanical; |
17470-02F10-000 |
— | ||
| replacement | |||||
|
3
|
3
17470-02F11-000 Seal,mechanicalSeal, water pump shaft mechanical; |
17470-02F11-000 |
from US $18.25 |
||
|
4
|
4
09283-10004-000 SEAL,OIL(10X21X5)Oil seal (10x21x5) Oil seal (10x21x5); |
09283-10004-000 |
from US $2.28 |
||
|
5
|
5
08110-69000-000 Bearing |
08110-69000-000 |
from US $8.97 |
||
|
6
|
6
08332-1108A-000 E RING |
08332-1108A-000 |
from US $0.96 |
||
|
7
|
7
17435-33400-000 O RING,WATER PUMP HOLDER |
17435-33400-000 |
from US $9.42 |
||
|
8
|
8
17410-29F21-000 CASE,WATER PUMP |
17410-29F21-000 |
from US $52.26 |
||
|
9
|
9
17435-29F00-000 O RING,WATER PUMP CASEO ring, water pump case |
17435-29F00-000 |
from US $5.41 |
||
|
10
|
10
01547-0610A-000 Bolt |
01547-0610A-000 |
from US $3.35 |
||
|
11
|
11
09168-06026-000 GASKET(6.4X11.5X0.8)Gasket (6.4x11.5x0.8); |
09168-06026-000 |
from US $0.91 |
||
|
12
|
12
09103-06204-000 BOLT(6X30)Bolt (6x30); |
09103-06204-000 |
from US $1.28 |
||
|
13
|
13
09103-06209-000 BOLT(6X45)Bolt (6x45); |
09103-06209-000 |
from US $4.49 |
||
|
14
|
14
09280-22001-000 O RING(D:2.4,ID:21.8)O-ring (d:2.4,id:21.8) O ring (d:2.4,id:21.8); |
09280-22001-000 |
from US $1.67 |
||
|
15
|
15
08331-3110A-000
Circlip
|
08331-3110A-000 |
— | ||
| replacement | |||||
|
15
|
15
08331-31109-000 CIRCLIP |
08331-31109-000 |
from US $0.96 |
||
|
16
|
16
17461-29F00-000 GEAR,WATER PUMP DRIVEN |
17461-29F00-000 |
from US $16.80 |
||
|
17
|
17
09181-10158-000 SHIM(10X18X0.5)Washer, pump driven gear Shim (10x18x0.5); |
09181-10158-000 |
from US $1.76 |
||
|
18
|
18
09261-04001-000 PIN(4X18.5) |
09261-04001-000 |
from US $0.98 |
||
