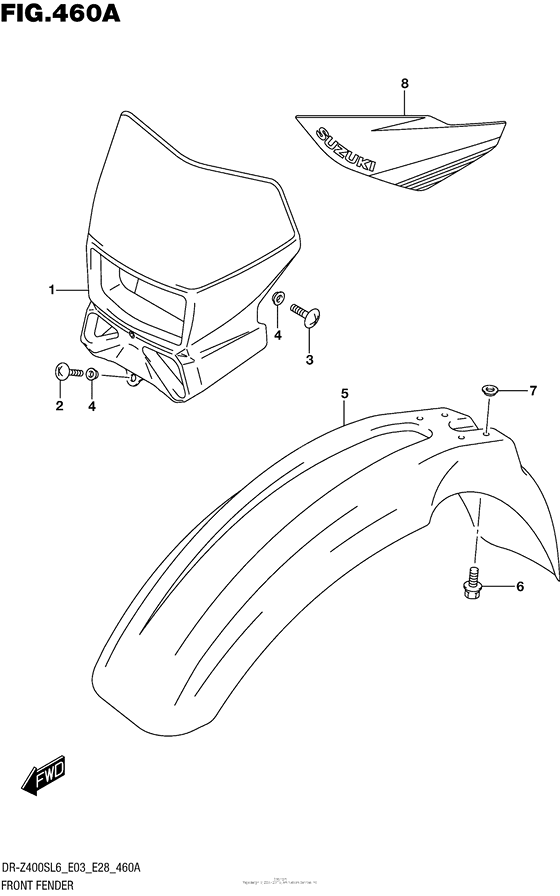

Front Fender Diagram Suzuki DR-Z400 DR-Z400S
- Year
- 2016
- Model code
- DR-Z400SL6
- Sales region
- USA/ Canada
- Engine Capacity
- 400
- Model
- DR-Z400S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51811-29F50-019 Cover,headlamp (Black) |
51811-29F50-019 |
from US $37.84 |
||
|
2
|
2
02142-0512B-000 SCREW |
02142-0512B-000 |
from US $0.80 |
||
|
3
|
3
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
4
|
4
09169-06071-000 WASHERWasher, rr side |
09169-06071-000 |
from US $0.96 |
||
|
5
|
5
53111-27C22-YUD FENDER,FRONT |
53111-27C22-YUD |
from US $79.12 |
||
|
6
|
6
09116-06170-000 BOLT(6X16) |
09116-06170-000 |
from US $0.80 |
||
|
7
|
7
09169-06073-000 WASHER |
09169-06073-000 |
from US $1.67 |
||
|
8
|
8
68725-29FS0-A84
TAPE,HEADLAMP HOUSING
|
68725-29FS0-A84 |
— | ||
| replacement | |||||
|
8
|
8
68725-29FS1-A84 Tape,headlamp Hsg |
68725-29FS1-A84 |
US $33.25 |
||
