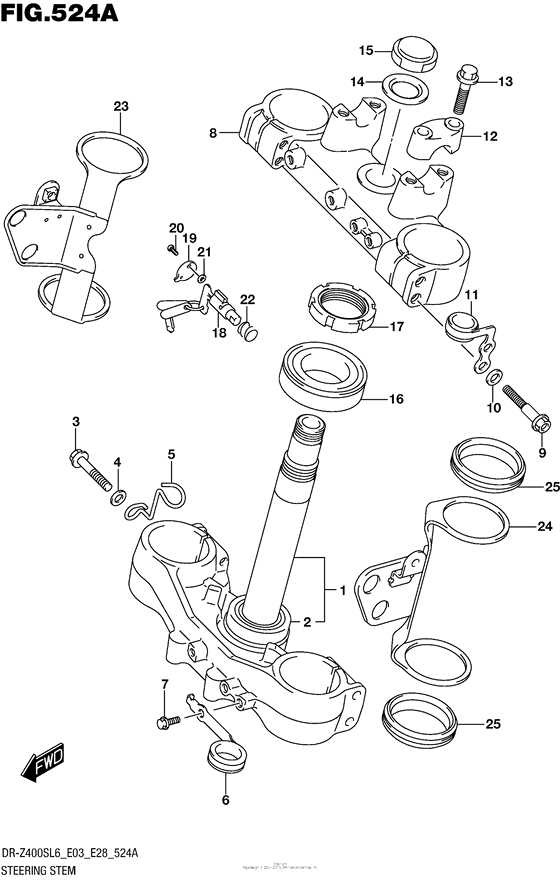

Steering Stem Diagram Suzuki DR-Z400 DR-Z400S
- Year
- 2016
- Model code
- DR-Z400SL6
- Sales region
- USA/ Canada
- Engine Capacity
- 400
- Model
- DR-Z400S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-29F20-000 BRACKET,FR FORK UNDER |
51410-29F20-000 |
US $473.44 |
||
|
2
|
2
09265-30014-000
BEARING(30X52X16)
|
09265-30014-000 |
— | ||
| replacement | |||||
|
2
|
2
09265-30035-000 Bearing |
09265-30035-000 |
from US $31.92 |
||
|
3
|
3
51328-36E00-000 BoltBolt, under |
51328-36E00-000 |
from US $1.76 |
||
|
4
|
4
51316-36E00-000 WASHER |
51316-36E00-000 |
from US $1.76 |
||
|
5
|
5
34938-29E01-000 GUIDE,SPEEDOMETER CABLE |
34938-29E01-000 |
from US $5.98 |
||
|
6
|
6
51453-29F20-000 GUIDE,CABLE |
51453-29F20-000 |
from US $13.73 |
||
|
7
|
7
58627-27C40-000 BOLT,PROTECTOR(6X10) |
58627-27C40-000 |
from US $1.76 |
||
|
8
|
8
51311-29F00-000 BRACKET,FR FORK UPR |
51311-29F00-000 |
from US $200.64 |
||
|
9
|
9
51328-29F20-000 BOLT |
51328-29F20-000 |
from US $2.11 |
||
|
10
|
10
51316-36E00-000 WASHER |
51316-36E00-000 |
from US $1.76 |
||
|
11
|
11
51288-29F20-000 GUIDE,CABLE |
51288-29F20-000 |
from US $14.26 |
||
|
12
|
12
56211-29F00-000 HOLDER,HANDLEBAR UPRHolder, handlebar |
56211-29F00-000 |
from US $11.62 |
||
|
13
|
13
51321-27C40-000 BOLT,HANDLE HOLDER(8X35) |
51321-27C40-000 |
from US $1.76 |
||
|
14
|
14
51356-29E00-000 WASHER,STEM HEAD |
51356-29E00-000 |
from US $8.06 |
||
|
15
|
15
51353-27G00-000 NUT |
51353-27G00-000 |
from US $17.07 |
||
|
16
|
16
09265-30014-000
BEARING(30X52X16)
|
09265-30014-000 |
— | ||
| replacement | |||||
|
16
|
16
09265-30035-000 Bearing |
09265-30035-000 |
from US $31.92 |
||
|
17
|
17
51631-28E00-000 NUT,STEERINGNut, stem |
51631-28E00-000 |
from US $14.26 |
||
|
18
|
18
51900-29F00-000 LOCK ASSY,STEERING |
51900-29F00-000 |
from US $104.88 |
||
|
19
|
19
51912-29F00-000 CAP,STEERING LOCK |
51912-29F00-000 |
from US $2.91 |
||
|
20
|
20
51913-29F00-000 PIN,STEERING LOCK |
51913-29F00-000 |
from US $2.39 |
||
|
21
|
21
51914-29F00-000 WASHER,STEERING LOCK |
51914-29F00-000 |
from US $2.28 |
||
|
22
|
22
51931-29F00-000 SPRING,STEERING LOCK |
51931-29F00-000 |
from US $2.02 |
||
|
23
|
23
51530-29F00-000 BRACKET,HEADLAMP HOUSING,RBracket comp, headlamp hsg rh |
51530-29F00-000 |
US $70.16 |
||
|
24
|
24
51540-29F00-000 BRACKET,HEADLAMP HOUSING,LBracket comp, headlamp hsg lh |
51540-29F00-000 |
US $70.16 |
||
|
25
|
25
51553-29F00-000 DAMPER,HEADLAMP HSG BRACKET |
51553-29F00-000 |
US $9.88 |
||
