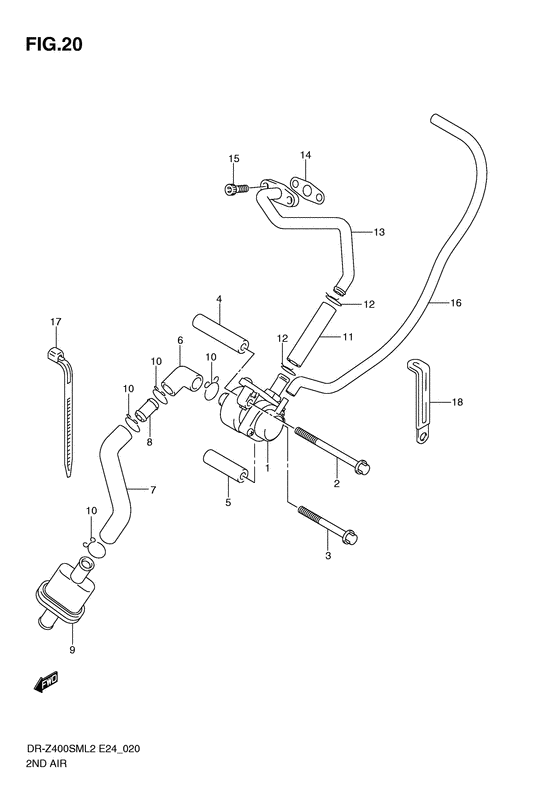

2nd air Diagram Suzuki DR-Z400 DR-Z400SM
- Year
- 2012
- Model code
- DR-Z400SML2(E24) L2
- Engine Capacity
- 400
- Model
- DR-Z400SM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18450-29F01-000 VALVE ASSY,2ND AIR |
18450-29F01-000 |
from US $87.95 |
||
|
2
|
2
01550-0675B-000 BOLTFront |
01550-0675B-000 |
US $19.10 |
||
|
3
|
3
01550-0660B-000 BoltRear |
01550-0660B-000 |
from US $5.47 |
||
|
4
|
4
18611-29F00-000 SPACER,2ND AIR VALVE FR |
18611-29F00-000 |
from US $6.37 |
||
|
5
|
5
18612-29F00-000 SPACER,2ND AIR VALVE RR |
18612-29F00-000 |
from US $5.67 |
||
|
6
|
6
18712-29F00-000
HOSE,2ND AIR CLEANER JT
|
18712-29F00-000 |
— | ||
| replacement | |||||
|
6
|
6
18712-29F01-000 Hose,2Nd Air Cleaner Jt |
18712-29F01-000 |
US $3.57 |
||
|
7
|
7
18711-29F00-000
HOSE,2ND AIR CLEANER
|
18711-29F00-000 |
— | ||
| replacement | |||||
|
7
|
7
18711-29F01-000 Hose,2Nd Air Cleaner |
18711-29F01-000 |
from US $5.89 |
||
|
8
|
8
13888-19B00-000 JOINT,2ND AIR CLEANER HOSEJoint Joint, cleaner hose; |
13888-19B00-000 |
from US $2.40 |
||
|
9
|
9
18700-29F00-000 CLEANER,2ND AIR |
18700-29F00-000 |
from US $12.03 |
||
|
10
|
10
09401-15101-000 CLIP |
09401-15101-000 |
from US $1.60 |
||
|
11
|
11
18461-29F00-000 HOSE,2ND AIR VALVE |
18461-29F00-000 |
from US $12.88 |
||
|
12
|
12
09401-13409-000 CLIPClamp Clip; |
09401-13409-000 |
from US $2.25 |
||
|
13
|
13
18410-29F10-000 PIPE,2ND AIR |
18410-29F10-000 |
from US $25.94 |
||
|
14
|
14
18441-45C01-000 GASKET,2ND AIR PIPE |
18441-45C01-000 |
from US $2.28 |
||
|
15
|
15
07130-0616A-000 BOLTBolt, piston jet valve |
07130-0616A-000 |
from US $0.96 |
||
| replacement | |||||
|
15
|
15
07130-0616B-000 BOLT |
07130-0616B-000 |
from US $0.91 |
||
|
16
|
16
09355-35755-600
HOSE(3.5X7.5X600)
Hose (3.5x7.5x600); L:600->230 |
09355-35755-600 |
— | ||
| replacement | |||||
|
16
|
16
09355-35007-600 Hose(3.5X7.5X600)Hose (3.5x7.5x600); L:600->230 |
09355-35007-600 |
from US $5.76 |
||
|
17
|
17
09407-18402-000 CLAMP(L:165)Clamp (l:165) Clamp (l:165); |
09407-18402-000 |
from US $1.98 |
||
|
18
|
18
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire Clamp (l:45); |
09404-06429-000 |
from US $1.52 |
||
