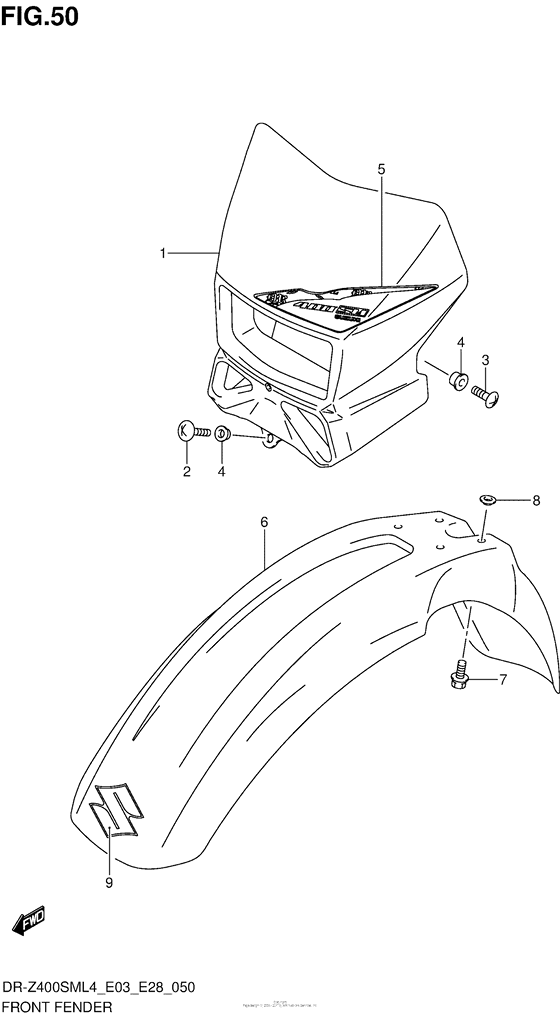

Front Fender Diagram Suzuki DR-Z400 DR-Z400SM
- Year
- 2014
- Model code
- DR-Z400SML4
- Sales region
- USA/ Canada
- Engine Capacity
- 400
- Model
- DR-Z400SM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51811-29F50-019 Cover,headlamp (Black) |
51811-29F50-019 |
from US $37.84 |
||
|
2
|
2
02142-0512B-000 SCREW |
02142-0512B-000 |
from US $0.80 |
||
|
3
|
3
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
4
|
4
09169-06071-000 WASHERWasher, rr side |
09169-06071-000 |
from US $0.96 |
||
|
5
|
5
68725-29FA0-HMS TAPE,HEADLAMP HOUSING |
68725-29FA0-HMS |
from US $20.79 |
||
|
5
|
5
68725-29FA0-HMT TAPE,HEADLAMP HOUSING |
68725-29FA0-HMT |
from US $20.79 |
||
|
6
|
6
53111-29FA0-019 FENDER,FR |
53111-29FA0-019 |
from US $91.20 |
||
|
6
|
6
53111-29FA0-30H FENDER,FR |
53111-29FA0-30H |
from US $82.84 |
||
|
7
|
7
09116-06170-000 BOLT(6X16) |
09116-06170-000 |
from US $0.80 |
||
|
8
|
8
09169-06073-000 WASHER |
09169-06073-000 |
from US $1.67 |
||
|
9
|
9
68151-07G10-YD8
EMBLEM,S
|
68151-07G10-YD8 |
— | ||
| replacement | |||||
|
9
|
9
68151-07G11-YD8 Emblem,s(Silver) |
68151-07G11-YD8 |
US $13.31 |
||
