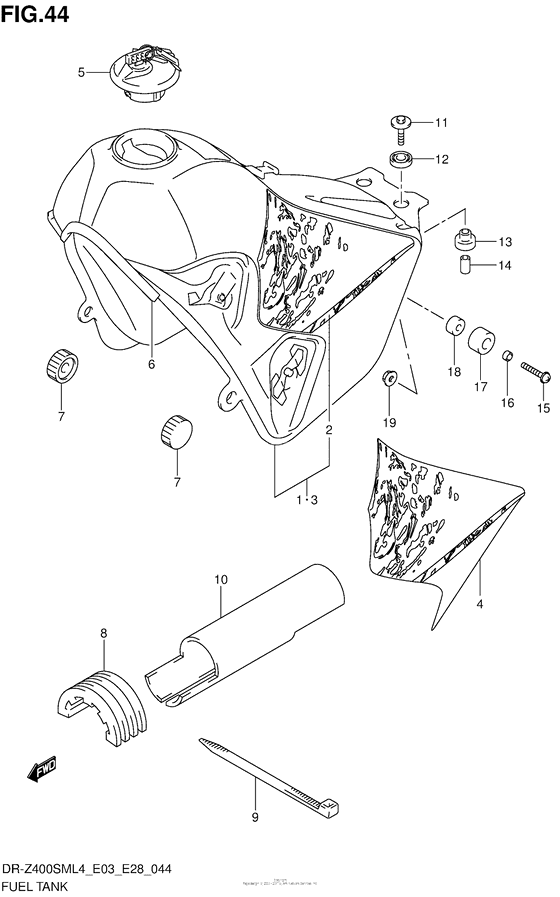

Fuel Tank (Dr-Z400Sml4 E33) Diagram Suzuki DR-Z400 DR-Z400SM
- Year
- 2014
- Model code
- DR-Z400SML4
- Sales region
- USA/ Canada
- Engine Capacity
- 400
- Model
- DR-Z400SM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49200-29FB0-019 TANK ASSY,FUEL |
49200-29FB0-019 |
from US $640.64 |
||
|
2
|
2
68120-29F50-HMS TAPE SET,FUEL TANK |
68120-29F50-HMS |
from US $47.10 |
||
|
3
|
3
49200-29FC0-019 TANK ASSY,FUEL |
49200-29FC0-019 |
from US $640.64 |
||
|
4
|
4
68120-29F60-HMT TAPE SET,FUEL TANK |
68120-29F60-HMT |
from US $72.50 |
||
|
5
|
5
44200-05820-000 CAP SET,FUEL TANK |
44200-05820-000 |
from US $93.10 |
||
| replacement | |||||
|
5
|
5
44200-05821-000 Cap Set,fuel Tank Filler |
44200-05821-000 |
US $126.83 |
||
|
6
|
6
68241-04X50-300 MOLDING |
68241-04X50-300 |
from US $2.46 |
||
|
7
|
7
09329-10016-000 CUSHIONCushion, front |
09329-10016-000 |
from US $2.08 |
||
|
8
|
8
44541-29F00-000 CUSHION,FUEL TANK |
44541-29F00-000 |
from US $11.36 |
||
|
9
|
9
09407-30402-000 CLAMP(L:300) |
09407-30402-000 |
from US $6.58 |
||
|
10
|
10
44194-29F00-000 SHIELD,FUEL TANK |
44194-29F00-000 |
US $21.12 |
||
|
11
|
11
09116-06214-000 BOLT(6X30)Bolt, rear |
09116-06214-000 |
from US $1.38 |
||
|
12
|
12
09320-14022-000 CUSHION |
09320-14022-000 |
from US $1.44 |
||
|
13
|
13
09320-10020-000
CUSHION
|
09320-10020-000 |
— | ||
| replacement | |||||
|
13
|
13
09320-10071-000 Cushion(9X24X18) |
09320-10071-000 |
from US $1.98 |
||
|
14
|
14
09180-06271-000 SPACER(6.5X9X18)Spacer (6.5x9x18) |
09180-06271-000 |
from US $1.51 |
||
|
15
|
15
02112-1630B-000 SCREWScrew, side |
02112-1630B-000 |
from US $4.22 |
||
|
16
|
16
09180-06215-000 SPACER(6.5X20X9)Spacer, cushion lower |
09180-06215-000 |
from US $10.13 |
||
|
17
|
17
45149-14D00-000 CUSHIONCushion, side |
45149-14D00-000 |
from US $4.80 |
||
|
18
|
18
09180-06306-000 SPACER(6.5X9X5) |
09180-06306-000 |
from US $3.21 |
||
|
19
|
19
08319-3106B-000 NUT |
08319-3106B-000 |
from US $1.37 |
||
