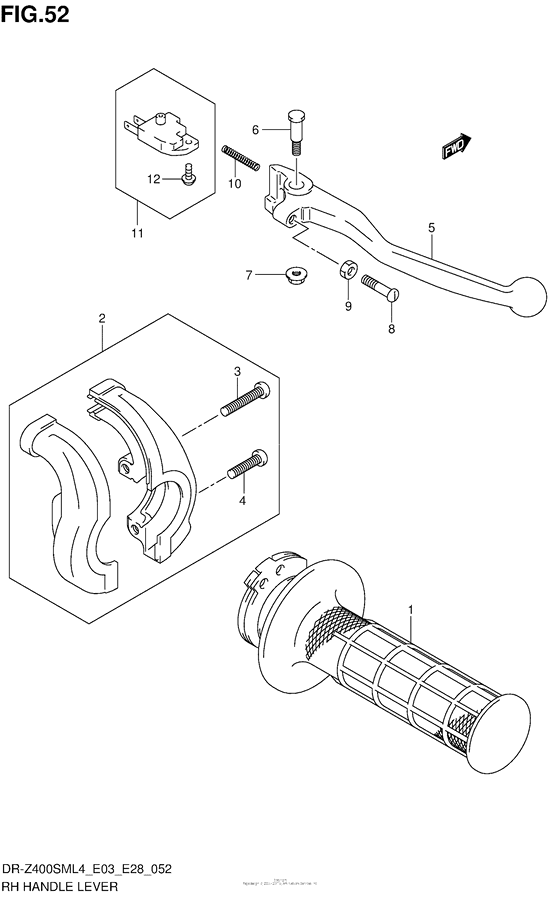

Rh Handle Lever Diagram Suzuki DR-Z400 DR-Z400SM
- Year
- 2014
- Model code
- DR-Z400SML4
- Sales region
- USA/ Canada
- Engine Capacity
- 400
- Model
- DR-Z400SM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57110-12D11-000 GRIP,THROTTLE |
57110-12D11-000 |
from US $24.80 |
||
|
2
|
2
57100-14D00-000 CASE ASSY,THROTTLE |
57100-14D00-000 |
from US $29.60 |
||
|
3
|
3
02112-0525B-000 SCREWScrew1 |
02112-0525B-000 |
from US $0.90 |
||
|
4
|
4
02112-0520B-000 SCREW |
02112-0520B-000 |
from US $0.77 |
||
|
5
|
5
57421-44E00-000 LEVER,BRAKE |
57421-44E00-000 |
from US $19.70 |
||
|
6
|
6
57431-14500-000 BOLT,BRAKE LEVERBolt, brake lever set |
57431-14500-000 |
from US $5.32 |
||
|
7
|
7
08319-2106A-000 NUT |
08319-2106A-000 |
from US $1.12 |
||
|
8
|
8
57431-14511-000 BOLT,ADJUST |
57431-14511-000 |
from US $2.46 |
||
|
9
|
9
08310-0005A-000 NUT |
08310-0005A-000 |
from US $0.80 |
||
|
10
|
10
57318-14502-000 SPRING,RETURN |
57318-14502-000 |
from US $1.76 |
||
|
11
|
11
57460-14J01-000
SWITCH ASSY,FR BRAKE
|
57460-14J01-000 |
— | ||
| replacement | |||||
|
11
|
11
57460-14J02-000 Switch Assy,stop |
57460-14J02-000 |
US $51.90 |
||
|
12
|
12
57465-17C00-000 SCREW |
57465-17C00-000 |
from US $1.52 |
||
