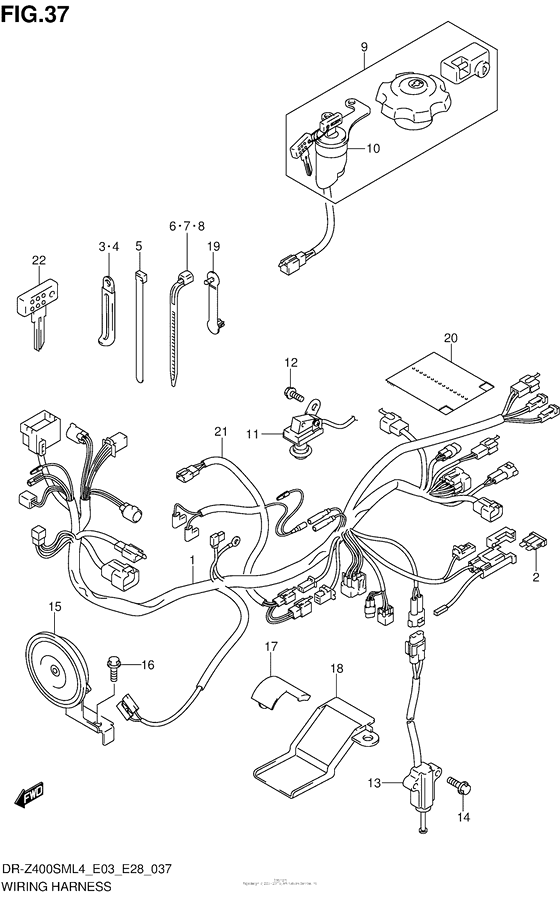

Wiring Harness (Dr-Z400Sml4 E33) Diagram Suzuki DR-Z400 DR-Z400SM
- Year
- 2014
- Model code
- DR-Z400SML4
- Sales region
- USA/ Canada
- Engine Capacity
- 400
- Model
- DR-Z400SM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-29FF0-000 HARNESS,WIRING |
36610-29FF0-000 |
US $343.65 |
||
|
2
|
2
09481-20101-000 FUSE(20A) |
09481-20101-000 |
from US $3.35 |
||
|
3
|
3
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire |
09404-06429-000 |
from US $1.52 |
||
|
4
|
4
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
| replacement | |||||
|
4
|
4
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
5
|
5
09407-14407-000 CLAMP(L:145)Band |
09407-14407-000 |
from US $2.08 |
||
|
6
|
6
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
7
|
7
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
|
8
|
8
09407-25401-000 CLAMP(L:235)Clamp (l:235) |
09407-25401-000 |
from US $2.08 |
||
|
9
|
9
37101-29821-000
LOCK SET
|
37101-29821-000 |
— | ||
| replacement | |||||
|
9
|
9
37101-29822-000 Lock Set |
37101-29822-000 |
from US $178.85 |
||
|
10
|
10
37110-29FA0-000 SWITCH ASSY,IGNITION |
37110-29FA0-000 |
US $131.10 |
||
|
11
|
11
37740-29F00-000 SWITCH ASSY |
37740-29F00-000 |
from US $71.39 |
||
|
12
|
12
02162-0608B-000 SCREW |
02162-0608B-000 |
from US $3.47 |
||
|
13
|
13
37840-11X50-000
Switch Assy,Side Stand
|
37840-11X50-000 |
— | ||
| replacement | |||||
|
13
|
13
37840-11X51-000 Switch Assy,Side Stand |
37840-11X51-000 |
from US $61.46 |
||
|
14
|
14
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
15
|
15
38500-29F01-000 HORN ASSY |
38500-29F01-000 |
from US $40.48 |
||
|
16
|
16
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
17
|
17
36611-29F10-000 PROTECTOR,WIRING HARNESS |
36611-29F10-000 |
from US $3.35 |
||
|
18
|
18
36611-29F00-000 PROTECTOR,WIRING HARNESS |
36611-29F00-000 |
from US $4.23 |
||
|
19
|
19
36651-48E00-000 CLAMP(L:63)Clamp, wiring harness |
36651-48E00-000 |
from US $1.92 |
||
|
20
|
20
36618-15D20-000
COVER,WIRING HARNESS
|
36618-15D20-000 |
— | ||
| replacement | |||||
|
20
|
20
36618-15D21-000 Cover,wiring Harness |
36618-15D21-000 |
from US $9.12 |
||
|
21
|
21
36856-29F00-000 WIRE,CARB HEATER |
36856-29F00-000 |
from US $26.40 |
||
|
22
|
22
37146-01F00-000 KEY,BLANK(TYPE:C) |
37146-01F00-000 |
from US $5.41 |
||
|
22
|
22
37146-01F10-000 KEY,BLANK(TYPE:D) |
37146-01F10-000 |
from US $5.41 |
||
|
22
|
22
37146-01F20-000 KEY,BLANK(TYPE:E) |
37146-01F20-000 |
from US $5.41 |
||
|
22
|
22
37146-01F30-000 KEY,BLANK(TYPE:F) |
37146-01F30-000 |
from US $5.41 |
||
