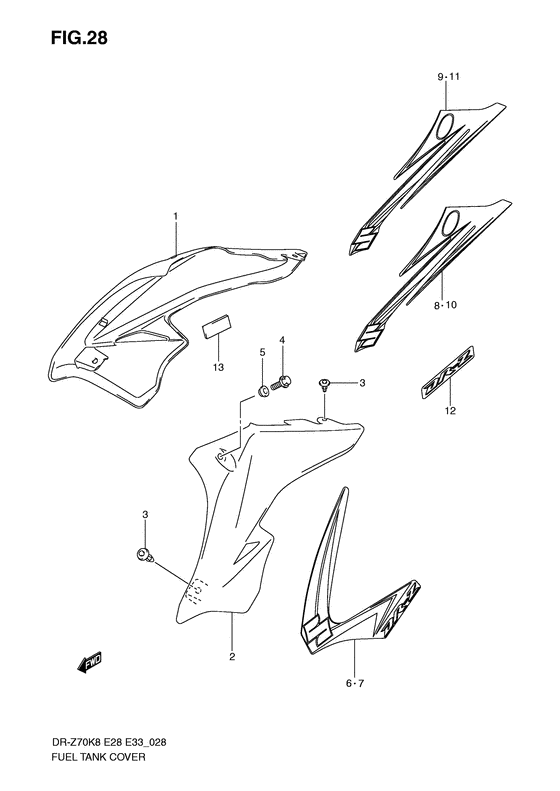

Fuel tank cover (Model k8/k9) Diagram Suzuki DR-Z70
- Year
- 2009
- Model code
- DR-Z70K9(E28/E33) K9
- Sales region
- USA/ Canada
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44271-14H00-019 COVER,FUEL TANK,RCover, fuel tank rh (black); |
44271-14H00-019 |
from US $87.58 |
||
|
1
|
1
44271-14H00-YU1 COVER,FUEL TANK,RCover, fuel tank rh (yellow); |
44271-14H00-YU1 |
from US $44.16 |
||
|
2
|
2
44281-14H00-019 COVER,FUEL TANK,LCover, fuel tank lh (black); |
44281-14H00-019 |
from US $58.51 |
||
|
2
|
2
44281-14H00-YU1 COVER,FUEL TANK,LCover, fuel tank lh (yellow); |
44281-14H00-YU1 |
from US $44.16 |
||
|
3
|
3
09409-08308-5ES CLIP(BLACK)Clip (black); |
09409-08308-5ES |
from US $1.13 |
||
|
4
|
4
01547-0616A-000 BOLTBolt; |
01547-0616A-000 |
from US $0.76 |
||
|
5
|
5
09169-06081-000 WASHER |
09169-06081-000 |
from US $5.88 |
||
|
6
|
6
68115-14H00-ESZ TAPE,FUEL TANK COVER,RModel k8 for 019 |
68115-14H00-ESZ |
from US $34.78 |
||
|
6
|
6
68115-14H00-EMA TAPE,FUEL TANK COVER,RModel k8 for yu1 |
68115-14H00-EMA |
US $34.78 |
||
|
7
|
7
68116-14H00-ESZ TAPE,FUEL TANK COVER,LModel k8 for 019 |
68116-14H00-ESZ |
from US $26.13 |
||
|
7
|
7
68116-14H00-EMA TAPE,FUEL TANK COVER,LModel k8 for yu1 |
68116-14H00-EMA |
from US $34.78 |
||
|
8
|
8
68115-14H20-GGL
TAPE,FUEL TANK COVER,R
Model k9 for 019 |
68115-14H20-GGL |
— | ||
|
9
|
9
68115-14H10-FYF
TAPE,FUEL TANK COVER,R
Model k9 for yu1 |
68115-14H10-FYF |
— | ||
|
10
|
10
68116-14H20-GGL
Tape,fuel tank cover,l
Model k9 for 019 |
68116-14H20-GGL |
— | ||
|
11
|
11
68116-14H10-FYF
TAPE,FUEL TANK COVER,L
Model k9 for yu1 |
68116-14H10-FYF |
— | ||
|
12
|
12
68111-14H00-GGM EMBLEM,FUEL TANK COVERModel k9 for 019 |
68111-14H00-GGM |
from US $6.92 |
||
|
12
|
12
68111-14H00-DCP
EMBLEM,FUEL TANK COVER
Model k9 for yu1 |
68111-14H00-DCP |
— | ||
| replacement | |||||
|
12
|
12
68111-14H01-DCP Emblem,fuel Tank CoverModel k9 for yu1 |
68111-14H01-DCP |
from US $9.16 |
||
|
13
|
13
44294-14H00-000 CUSHION,FUEL TANK COVERCushion, rh; |
44294-14H00-000 |
from US $2.83 |
||
