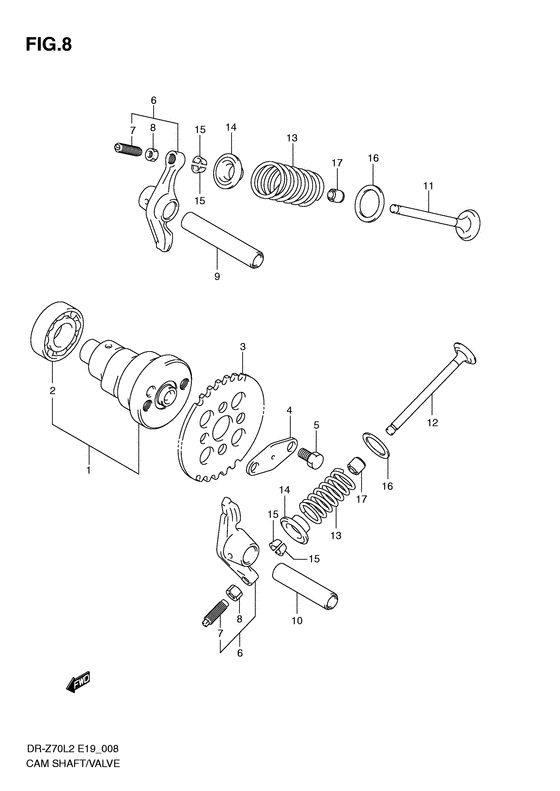

Camshaft - valve Diagram Suzuki DR-Z70
- Year
- 2012
- Model code
- DR-Z70L2(E19) L2
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12710-02A10-000 CAMSHAFT ASSY |
12710-02A10-000 |
from US $105.25 |
||
|
2
|
2
09262-15013-000 BEARING(15X32X9)Bearing |
09262-15013-000 |
from US $14.46 |
||
|
3
|
3
12741-09405-000 SPROCKET,CAMSHAFTSprocket, camshaft Sprocket, camshaft; |
12741-09405-000 |
US $11.37 |
||
|
4
|
4
12714-09401-000 WASHER,SPROCKET |
12714-09401-000 |
US $2.13 |
||
|
5
|
5
09111-06032-000 BOLT(6X10.5)Bolt (6x10.5); |
09111-06032-000 |
from US $1.87 |
||
|
6
|
6
12840-30A11-000 ARM,VALVE ROCKER |
12840-30A11-000 |
from US $28.89 |
||
|
7
|
7
12842-49201-000 SCREW,TAPPET ADJUSTINGScrew, tappet adjusting |
12842-49201-000 |
from US $2.90 |
||
|
8
|
8
12843-27A00-000 NUT,TAPPET ADJUSTINGNut, tappet adjusting |
12843-27A00-000 |
from US $1.52 |
||
|
9
|
9
12861-09401-000 SHAFT,VALVE ROCKER ARM INTAKEShaft, valve locker arm, in Shaft, valve locker arm, in; |
12861-09401-000 |
US $8.46 |
||
|
10
|
10
12871-09401-000 SHAFT,VALVE ROCKER ARM EXHAUSTShaft, valve locker arm, ex Shaft, valve locker arm, ex; |
12871-09401-000 |
US $8.46 |
||
|
11
|
11
12911-09D00-000 Valve,intake |
12911-09D00-000 |
from US $22.82 |
||
|
12
|
12
12912-02A00-000 Valve,exhaust |
12912-02A00-000 |
from US $29.26 |
||
|
13
|
13
12921-36G00-000 SPRING SET,VALVE |
12921-36G00-000 |
US $4.93 |
||
|
14
|
14
12931-09420-000 RETAINER,VALVE SPRINGRetainer, valve spring; |
12931-09420-000 |
US $3.04 |
||
|
15
|
15
12932-27A00-000 VALVE COTTERCotter, valve; |
12932-27A00-000 |
from US $1.60 |
||
|
16
|
16
12934-09400-000 SEAT,VALVE SPRING OUTERSeat, spring |
12934-09400-000 |
US $2.13 |
||
|
17
|
17
09289-05008-000 SEAL,OIL(5X10.5X8.4) |
09289-05008-000 |
from US $4.84 |
