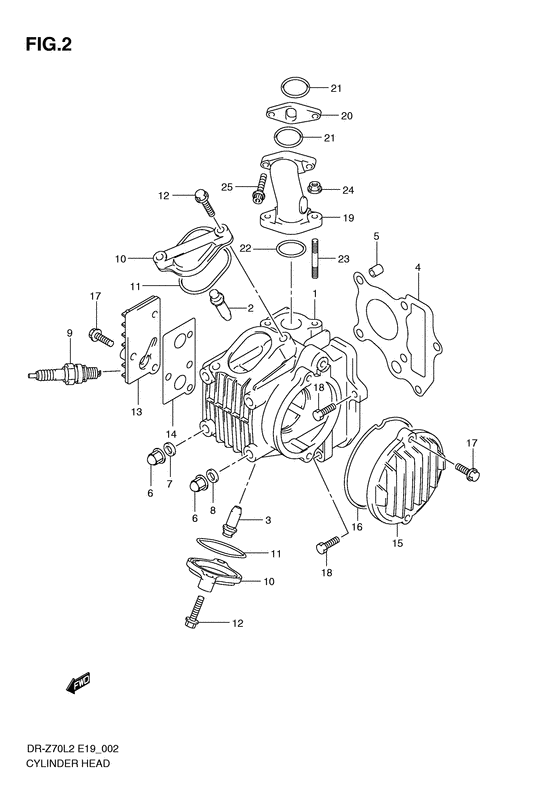

Cylinder head Diagram Suzuki DR-Z70
- Year
- 2012
- Model code
- DR-Z70L2(E19) L2
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11110-02A00-000
Head,cylinder
|
11110-02A00-000 |
— | ||
|
2
|
2
11115-02A70-000 GUIDE,INTAKE VALVEGuide, intake valve (os:0.3) Guide, intake valve (os:0.3); |
11115-02A70-000 |
US $16.41 |
||
|
3
|
3
11115-09470-000 GUIDE,VALVEGuide, exhaust valve (os:0.3) Guide, exhaust valve (os:0.3); |
11115-09470-000 |
US $14.90 |
||
|
4
|
4
11141-02A00-000 GASKET,CYLINDER HEAD |
11141-02A00-000 |
from US $14.59 |
||
|
5
|
5
09206-08001-000 PIN(8X11)Pin (8x11); |
09206-08001-000 |
from US $1.06 |
||
|
6
|
6
09159-06100-000 NUT |
09159-06100-000 |
from US $4.28 |
||
|
7
|
7
09168-06017-000 GASKET(6.5X13X2.3)Gasket Gasket (6.5x13x2.3); |
09168-06017-000 |
from US $2.62 |
||
|
8
|
8
09160-06127-000 WASHER(6.5X14X2.3)Washer (6.5x14x2.3) Washer (6.5x14x2.3); |
09160-06127-000 |
from US $3.15 |
||
|
9
|
9
09482-00408-000 PLUG,SPARK(CR7HSA)Spark plug (ngk,cr7hsa); |
09482-00408-000 |
from US $5.63 |
||
|
10
|
10
11175-09400-000 CAP,INSPECTION |
11175-09400-000 |
US $5.19 |
||
|
11
|
11
09280-50007-000 O RING(D:2.4,ID:33.6X48.6)O ring (d:2.4,id:48.6) O ring (d:2.4,id:48.6); |
09280-50007-000 |
from US $2.13 |
||
|
12
|
12
01547-0625A-000 BOLTBolt, fr brake hose no.2 |
01547-0625A-000 |
from US $0.91 |
||
|
13
|
13
11134-09400-000 COVER,CYLINDER HEAD,RCover, cylinder head, rh Cover, cylinder head, rh; |
11134-09400-000 |
US $8.98 |
||
|
14
|
14
11135-09420-000 GASKET,CYL HEAD COVER,R(NA)Gasket, cylinder head cover Gasket, head cover, rh; |
11135-09420-000 |
from US $1.80 |
||
|
15
|
15
11121-09405-000 COVER,CYLINDER HEAD,L |
11121-09405-000 |
from US $9.64 |
||
|
16
|
16
09280-70008-000 O RING(D:2.4,ID:73.5)O ring (d:2.4,id:73.6) O ring (d:2.4,id:73.6); |
09280-70008-000 |
from US $10.34 |
||
|
17
|
17
01547-0620A-000 Bolt |
01547-0620A-000 |
from US $0.76 |
||
|
18
|
18
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
19
|
19
13111-14H00-000 PIPE,INTAKE |
13111-14H00-000 |
from US $42.69 |
||
|
20
|
20
13129-36G00-000 INSULATOR,CARBURETOR |
13129-36G00-000 |
from US $5.19 |
||
|
21
|
21
09280-21010-000 O RING(D:1.9,ID:21.8)O ring, d:1.9 id:21.8 O ring, insulator (d:1.9,id:21.8); |
09280-21010-000 |
from US $1.07 |
||
|
22
|
22
09280-24010-000 O RING(D:2.4,ID:23.7)O ring, collar output O ring, intake pipe (d:2.4,id:23.7); |
09280-24010-000 |
from US $2.72 |
||
|
23
|
23
01421-0620A-000 BOLT,STUD |
01421-0620A-000 |
from US $1.12 |
||
|
24
|
24
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
|
25
|
25
07130-0625A-000 BOLTBolt |
07130-0625A-000 |
from US $0.91 |
