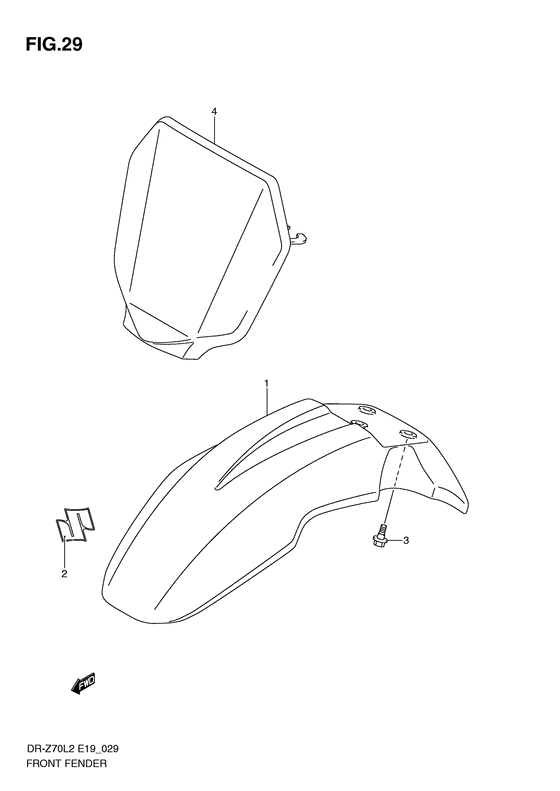

Front fender Diagram Suzuki DR-Z70
- Year
- 2012
- Model code
- DR-Z70L2(E19) L2
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53111-14H00-YU1 FENDER,FRFender, front (yellow); |
53111-14H00-YU1 |
from US $66.61 |
||
|
2
|
2
68641-43EK0-YCF EMBLEM,SEmblem, "s" |
68641-43EK0-YCF |
from US $6.29 |
||
|
3
|
3
09111-06072-000 BOLT(6X17.8)Bolt, protector Bolt (6x17.8); |
09111-06072-000 |
from US $1.52 |
||
|
4
|
4
94911-14H00-30H PLATE,NUMBER FRPlate, front number (white); |
94911-14H00-30H |
from US $35.70 |
