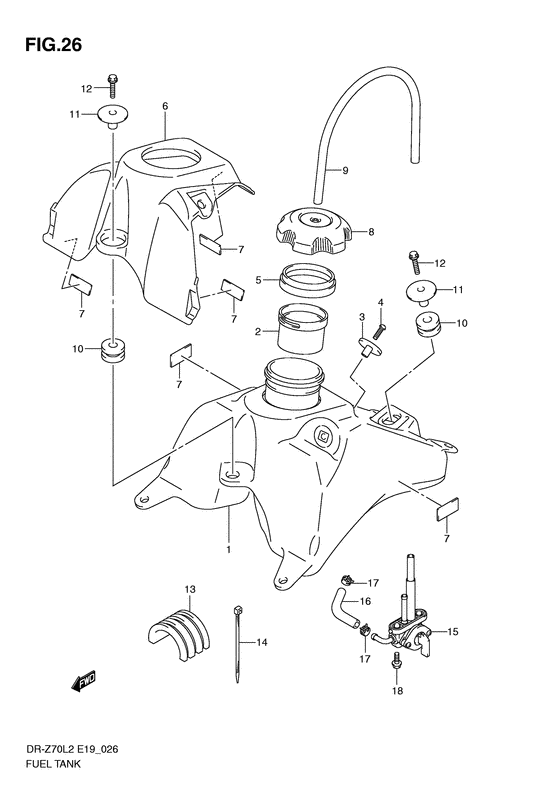

Fuel tank Diagram Suzuki DR-Z70
- Year
- 2012
- Model code
- DR-Z70L2(E19) L2
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44100-14H00-000 TANK ASSY,FUEL |
44100-14H00-000 |
US $340.40 |
||
|
2
|
2
44199-19A00-000 TUBE,FILLER INLETTube, inlet Tube, fuel inlet; |
44199-19A00-000 |
from US $5.28 |
||
|
3
|
3
44132-27C01-000 HOOK,SEAT FRHook, seat; |
44132-27C01-000 |
from US $5.04 |
||
|
4
|
4
09139-06148-000 BOLT(6X20)Screw; |
09139-06148-000 |
from US $2.61 |
||
|
5
|
5
44261-14H00-000 RUBBER,FUEL TANK INLETRubber, inlet |
44261-14H00-000 |
from US $7.18 |
||
|
6
|
6
44291-14H00-000 COVER,FUEL TANK UPR |
44291-14H00-000 |
from US $29.99 |
||
|
7
|
7
44294-14H00-000 CUSHION,FUEL TANK COVER |
44294-14H00-000 |
from US $2.83 |
||
|
8
|
8
44200-29F00-000
CAP ASSY,FUEL TANK FILLER
|
44200-29F00-000 |
— | ||
| replacement | |||||
|
8
|
8
44200-29F01-000 Cap Assy,fuel Tank Filler |
44200-29F01-000 |
from US $37.90 |
||
|
9
|
9
09352-50823-600
HOSE(5X8.2X600)
Hose, breather (l:600->360); |
09352-50823-600 |
— | ||
| replacements | |||||
|
9
|
9
44420-44AR0-000 HOSE SET,FUELHose, breather (l:600->360); |
44420-44AR0-000 |
US $11.95 |
||
|
9
|
9
09352-50005-600 Hose(5X8.2X600)Hose, breather (l:600->360); |
09352-50005-600 |
US $4.10 |
||
|
10
|
10
44511-10G10-000 CUSHION,FUEL TANK RRCushion, rear |
44511-10G10-000 |
US $3.57 |
||
|
11
|
11
44512-10G00-000 WASHER,FUEL TANK |
44512-10G00-000 |
US $4.20 |
||
|
12
|
12
01547-0625A-000 BOLTBolt, fr brake hose no.2 |
01547-0625A-000 |
from US $0.91 |
||
|
13
|
13
44541-13E10-000 CUSHION,FUEL TANKCushion, center; |
44541-13E10-000 |
from US $12.59 |
||
|
14
|
14
09407-30402-000 CLAMP(L:300) |
09407-30402-000 |
from US $6.58 |
||
|
15
|
15
44300-14H00-000 COCK ASSY,FUEL |
44300-14H00-000 |
from US $60.80 |
||
|
16
|
16
44421-14H00-000
HOSE,FUEL
|
44421-14H00-000 |
— | ||
| replacements | |||||
|
16
|
16
44421-14H01-000
HOSE,FUEL
|
44421-14H01-000 |
— | ||
|
16
|
16
44421-14H10-000 Hose,fuel |
44421-14H10-000 |
from US $8.72 |
||
|
17
|
17
09401-09403-000 CLIP |
09401-09403-000 |
from US $1.12 |
||
|
18
|
18
01547-0616A-000 BOLTBolt; |
01547-0616A-000 |
from US $0.76 |
||
