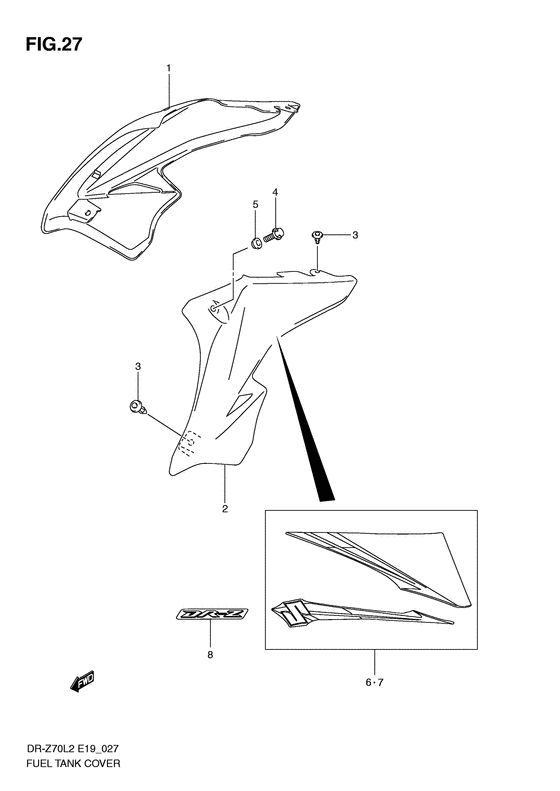

Fuel tank cover Diagram Suzuki DR-Z70
- Year
- 2012
- Model code
- DR-Z70L2(E19) L2
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44271-14H00-YU1 COVER,FUEL TANK,RCover, fuel tank rh (yellow); |
44271-14H00-YU1 |
from US $44.16 |
||
|
2
|
2
44281-14H00-YU1 COVER,FUEL TANK,LCover, fuel tank lh (yellow); |
44281-14H00-YU1 |
from US $44.16 |
||
|
3
|
3
09409-08308-5ES CLIP(BLACK)Clip (black); |
09409-08308-5ES |
from US $1.15 |
||
|
4
|
4
01547-0616A-000 BOLTBolt; |
01547-0616A-000 |
from US $0.76 |
||
|
5
|
5
09169-06081-000 WASHER |
09169-06081-000 |
from US $5.88 |
||
|
6
|
6
68110-14H00-HBP TAPE SET,FUEL TANK COVER,R |
68110-14H00-HBP |
from US $40.48 |
||
|
7
|
7
68120-14H00-HBP TAPE SET,FUEL TANK COVER,L |
68120-14H00-HBP |
from US $40.48 |
||
|
8
|
8
68111-14H00-DCP
EMBLEM,FUEL TANK COVER
|
68111-14H00-DCP |
— | ||
| replacement | |||||
|
8
|
8
68111-14H01-DCP Emblem,fuel Tank Cover |
68111-14H01-DCP |
from US $9.16 |
||
