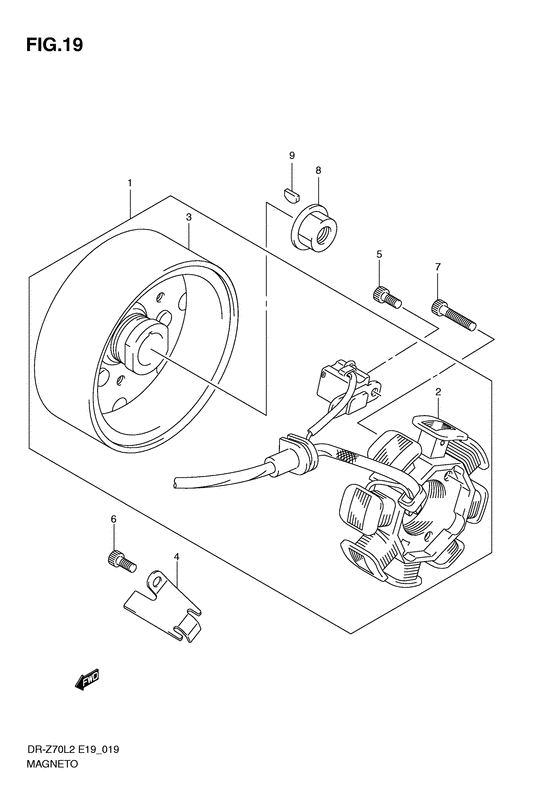

Magneto Diagram Suzuki DR-Z70
- Year
- 2012
- Model code
- DR-Z70L2(E19) L2
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32100-14H00-000 MAGNETO ASSY |
32100-14H00-000 |
from US $264.96 |
||
|
2
|
2
32101-14H00-000 STATOR ASSY |
32101-14H00-000 |
from US $176.64 |
||
|
3
|
3
32102-14H00-000 ROTOR ASSY |
32102-14H00-000 |
US $115.18 |
||
|
4
|
4
32371-30D00-000 CLAMP,MAGNETO LEAD |
32371-30D00-000 |
US $2.13 |
||
|
5
|
5
07130-0512A-000 BOLTBolt, pulser/clamp Screw, pulser coil; |
07130-0512A-000 |
from US $0.91 |
||
|
6
|
6
07130-0612A-000 BOLTBolt, magneto lead clamp; |
07130-0612A-000 |
from US $0.96 |
||
|
7
|
7
07130-0620A-000 BOLTBolt, magneto stator; |
07130-0620A-000 |
from US $0.91 |
||
|
8
|
8
08316-1010A-000 NUTNut, kick starter Nut, magneto rotor; |
08316-1010A-000 |
from US $0.76 |
||
|
9
|
9
08341-31039-000 KEYKey, magneto; |
08341-31039-000 |
from US $1.60 |
