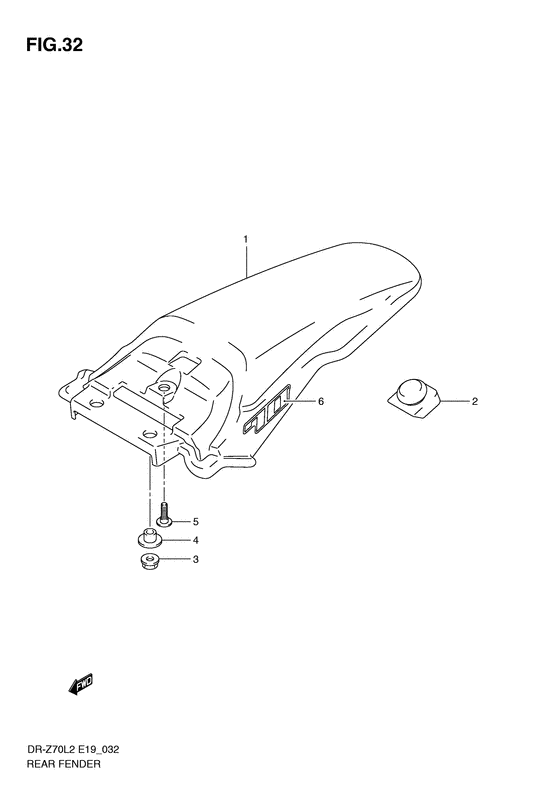

Rear fender Diagram Suzuki DR-Z70
- Year
- 2012
- Model code
- DR-Z70L2(E19) L2
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63111-14H00-YU1 FENDER,RRFender, rear (yellow); |
63111-14H00-YU1 |
from US $26.40 |
||
|
2
|
2
63159-14H00-000 CUSHION,RR FENDER |
63159-14H00-000 |
from US $4.75 |
||
|
3
|
3
08319-3106A-000 NUT |
08319-3106A-000 |
from US $1.44 |
||
|
4
|
4
09180-06325-000 SPACER(6.2X8.4X6.9) |
09180-06325-000 |
from US $1.82 |
||
|
5
|
5
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
6
|
6
68171-14H00-GY8 EMBLEM,RR FENDER |
68171-14H00-GY8 |
from US $6.62 |
