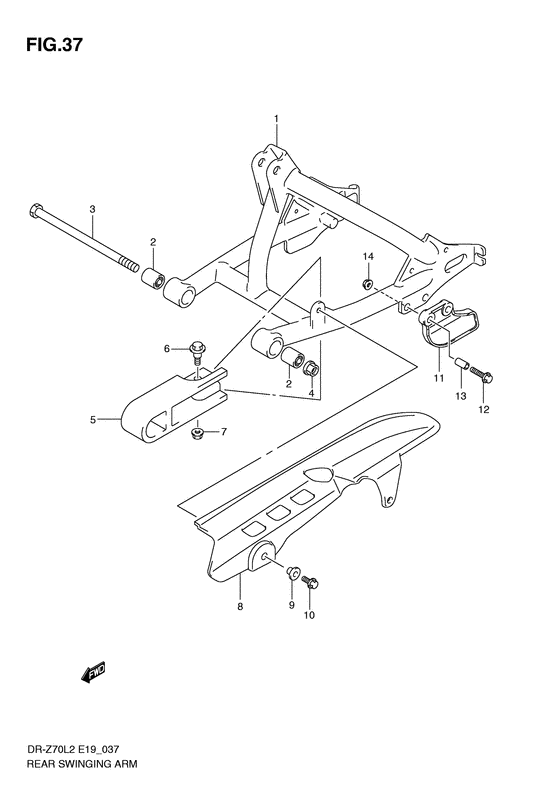

Rear swinging arm Diagram Suzuki DR-Z70
- Year
- 2012
- Model code
- DR-Z70L2(E19) L2
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61000-14H10-13L SWINGINGARM ASSY,RRSwinging arm assy, rear (silver); |
61000-14H10-13L |
from US $379.04 |
||
|
2
|
2
09319-10043-000 BUSH(10X23X30)Bushing (10x23x37); |
09319-10043-000 |
from US $19.36 |
||
|
3
|
3
61211-14H00-000 SHAFT,RR SWINGINGARM PIVOT |
61211-14H00-000 |
from US $8.91 |
||
|
4
|
4
08319-3110A-000 NUTNut, fr differential |
08319-3110A-000 |
from US $1.98 |
||
|
5
|
5
61273-14H00-000
BUFFER,CHAIN TOUCH DEFENSE
|
61273-14H00-000 |
— | ||
| replacement | |||||
|
5
|
5
61273-14H01-000 Buffer,chain |
61273-14H01-000 |
from US $17.92 |
||
|
6
|
6
09111-06092-000 BOLT(6X19)Bolt Bolt, chain buffer (6x19); |
09111-06092-000 |
from US $4.13 |
||
|
7
|
7
08316-1006A-000 NUTNut, chain buffer; |
08316-1006A-000 |
from US $0.80 |
||
|
8
|
8
61311-14H00-000 CASE,CHAIN |
61311-14H00-000 |
from US $37.90 |
||
|
9
|
9
09169-06040-000 WASHERWasher, chain case; |
09169-06040-000 |
from US $2.94 |
||
|
10
|
10
01547-0612A-000 BOLTBolt, push rod guide Bolt, chain case; |
01547-0612A-000 |
from US $0.76 |
||
|
11
|
11
61341-14H00-000 GUIDE,CHAIN |
61341-14H00-000 |
from US $10.82 |
||
|
12
|
12
09116-06177-000 BOLT(6X25)Bolt, chain guide (6x25); |
09116-06177-000 |
from US $0.78 |
||
|
13
|
13
09180-06304-000 SPACER(6.1X8X15)Spacer, chain guide Spacer, chain guide; |
09180-06304-000 |
US $16.90 |
||
|
14
|
14
08316-1006A-000 NUTNut, chain guide; |
08316-1006A-000 |
from US $0.80 |
||
