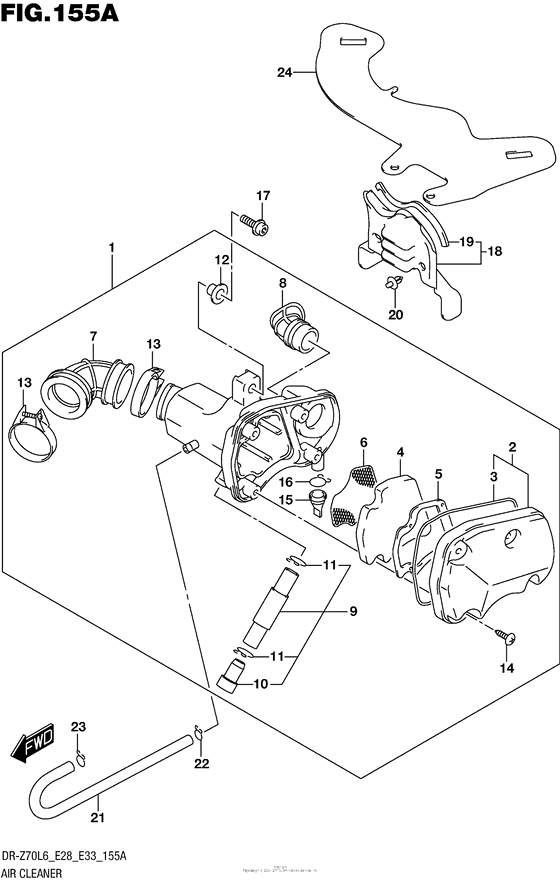

Air Cleaner Diagram Suzuki DR-Z70
- Year
- 2016
- Model code
- DR-Z70L6
- Sales region
- USA/ Canada
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-14H00-000
CLEANER ASSY,AIR
|
13700-14H00-000 |
— | ||
| replacement | |||||
|
1
|
1
13700-14H01-000 Cleaner Assy,air |
13700-14H01-000 |
from US $103.04 |
||
|
2
|
2
13740-14H00-000 CAP |
13740-14H00-000 |
from US $10.01 |
||
|
3
|
3
13746-14H00-000 GASKET |
13746-14H00-000 |
from US $3.39 |
||
|
4
|
4
13780-14H00-000 FILTER |
13780-14H00-000 |
from US $10.19 |
||
|
5
|
5
13791-14H00-000 HOLDER |
13791-14H00-000 |
US $2.72 |
||
|
6
|
6
13811-14H00-000 TRAP,FLAME |
13811-14H00-000 |
from US $4.93 |
||
|
7
|
7
13881-14H00-000 TUBE,OUTLET |
13881-14H00-000 |
from US $10.67 |
||
|
8
|
8
13890-14H00-000 TUBE,INLET |
13890-14H00-000 |
US $8.91 |
||
|
9
|
9
13870-14H00-000 TUBE,DRAIN |
13870-14H00-000 |
US $9.31 |
||
|
10
|
10
13877-00190-000 PLUGPlug, drain |
13877-00190-000 |
from US $2.58 |
||
|
11
|
11
09401-14301-000 CLIPClip |
09401-14301-000 |
from US $2.13 |
||
|
12
|
12
09180-06331-000 SPACER(6.2X8.4X10.9) |
09180-06331-000 |
from US $6.49 |
||
|
13
|
13
09402-36208-000 CLAMP |
09402-36208-000 |
from US $9.13 |
||
|
14
|
14
02142-0514B-000 SCREW |
02142-0514B-000 |
from US $1.85 |
||
|
15
|
15
13878-39C10-000 TUBE,DRAINHose |
13878-39C10-000 |
US $2.72 |
||
|
16
|
16
09401-10401-000 CLIPClip |
09401-10401-000 |
from US $2.28 |
||
|
17
|
17
07120-0620A-000 BOLT |
07120-0620A-000 |
from US $4.13 |
||
|
18
|
18
13840-14H00-000 COVER,CLEANER INLET |
13840-14H00-000 |
US $11.81 |
||
|
19
|
19
13841-14H00-000 CUSHION |
13841-14H00-000 |
US $1.44 |
||
|
20
|
20
09409-06322-5PK CLIP(BLACK)Clip (black) |
09409-06322-5PK |
from US $1.58 |
||
|
21
|
21
13851-14H00-000
HOSE,BREATHER
|
13851-14H00-000 |
— | ||
| replacement | |||||
|
21
|
21
13851-14H01-000 Hose,breather |
13851-14H01-000 |
from US $6.04 |
||
|
22
|
22
09401-09101-000 CLIP |
09401-09101-000 |
US $11.80 |
||
|
23
|
23
09401-10401-000 CLIPClip |
09401-10401-000 |
from US $2.28 |
||
|
24
|
24
13842-14H00-000 SHEET,AIR CLEANER INLET |
13842-14H00-000 |
from US $8.98 |
||
