Battery Holder Diagram Suzuki DR-Z70
- Year
- 2016
- Model code
- DR-Z70L6
- Sales region
- USA/ Canada
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?

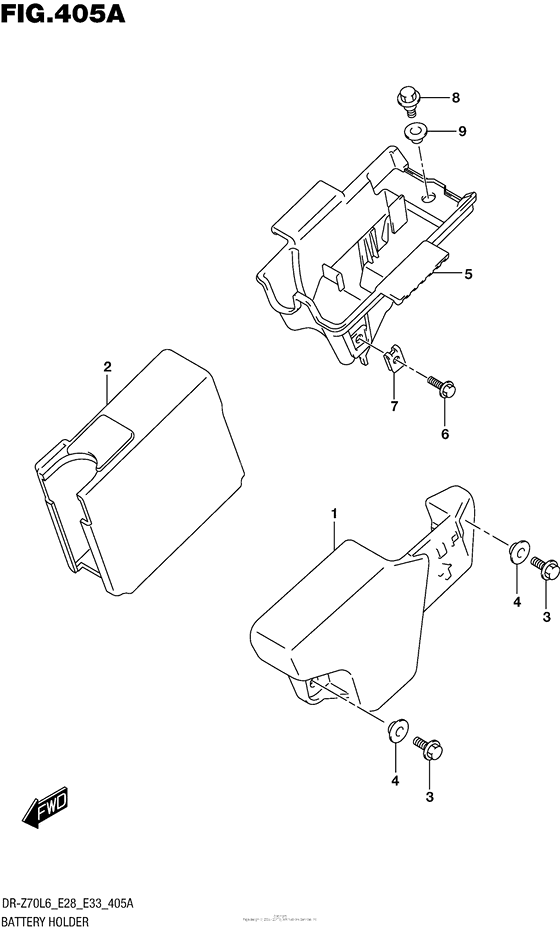

Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41541-14H00-000 HOLDER,BATTERY |
41541-14H00-000 |
from US $18.77 |
||
|
2
|
2
41566-14H00-000 RUBBER,BATTERY HOLDER |
41566-14H00-000 |
from US $18.77 |
||
|
3
|
3
01547-0612A-000 BOLTBolt, push rod guide |
01547-0612A-000 |
from US $0.76 |
||
|
4
|
4
09169-06040-000 WASHER |
09169-06040-000 |
from US $2.94 |
||
|
5
|
5
47411-14H00-000 HOLDER,ELECTRIC PARTS |
47411-14H00-000 |
from US $14.02 |
||
|
6
|
6
02162-0516A-000 SCREW |
02162-0516A-000 |
from US $0.70 |
||
|
7
|
7
09148-05052-000 NUT |
09148-05052-000 |
from US $1.22 |
||
|
8
|
8
01547-0612A-000 BOLTBolt, push rod guide |
01547-0612A-000 |
from US $0.76 |
||
|
9
|
9
09169-06071-000 WASHERWasher, rr side |
09169-06071-000 |
from US $0.96 |
