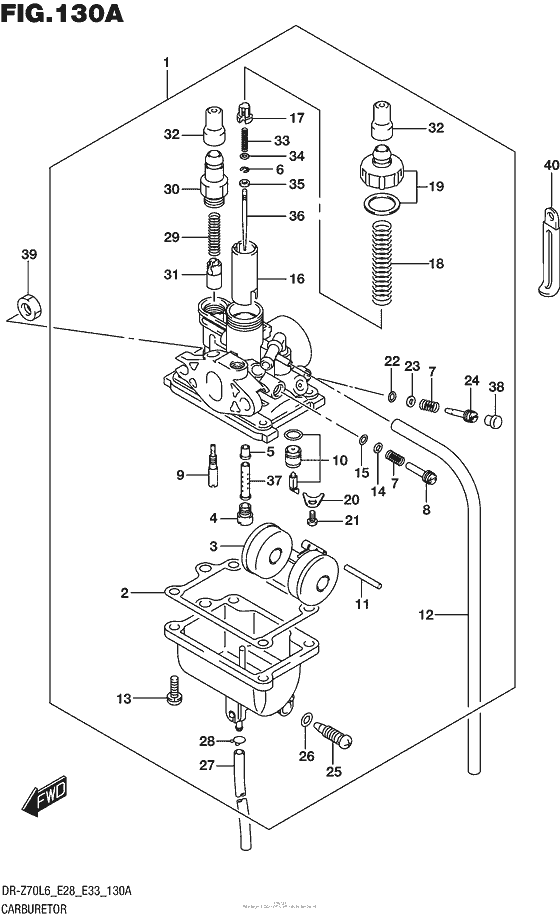

Carburetor Diagram Suzuki DR-Z70
- Year
- 2016
- Model code
- DR-Z70L6
- Sales region
- USA/ Canada
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13200-14H01-000
CARBURETOR ASSY
|
13200-14H01-000 |
— | ||
| replacement | |||||
|
1
|
1
13200-14H02-000 Carburetor Assy |
13200-14H02-000 |
from US $226.48 |
||
|
2
|
2
13251-02410-000 GASKET |
13251-02410-000 |
from US $3.17 |
||
|
3
|
3
13250-02500-000 FLOAT |
13250-02500-000 |
from US $16.04 |
||
|
4
|
4
09491-57005-000 JET,MAIN(57.5)Jet, main (57.5) |
09491-57005-000 |
from US $9.57 |
||
|
5
|
5
13341-14H00-000 JET,NEEDLE |
13341-14H00-000 |
from US $25.58 |
||
|
6
|
6
13533-98410-000 E RING |
13533-98410-000 |
from US $2.65 |
||
|
7
|
7
13268-35010-000 SPRING |
13268-35010-000 |
from US $1.98 |
||
|
8
|
8
13483-16A01-000 SCREW,THROTTLE STOP |
13483-16A01-000 |
from US $7.95 |
||
|
9
|
9
09492-17012-000 JET,PILOT(17.5) |
09492-17012-000 |
from US $7.45 |
||
|
10
|
10
13370-36G00-000 VALVE ASSY,NEEDLE |
13370-36G00-000 |
from US $29.60 |
||
|
11
|
11
13254-20010-000 PIN,FLOAT |
13254-20010-000 |
from US $1.67 |
||
|
12
|
12
09352-50903-600
HOSE(5X9X600)
|
09352-50903-600 |
— | ||
| replacement | |||||
|
12
|
12
09352-50006-600 Hose(5X9X600) |
09352-50006-600 |
from US $4 |
||
|
13
|
13
13601-04148-000 SCREW |
13601-04148-000 |
from US $1.34 |
||
|
14
|
14
13291-35010-000 WASHER |
13291-35010-000 |
from US $1.82 |
||
|
15
|
15
13295-33010-000 O RINGO ring |
13295-33010-000 |
from US $1.82 |
||
|
16
|
16
13551-36G00-000 VALVE,PISTON |
13551-36G00-000 |
from US $22.82 |
||
|
17
|
17
13418-12F40-000 HOLDER |
13418-12F40-000 |
from US $3.39 |
||
|
18
|
18
13268-36G00-000 SPRING |
13268-36G00-000 |
from US $2.69 |
||
|
19
|
19
13261-36G00-000 CAP |
13261-36G00-000 |
from US $17.66 |
||
|
20
|
20
13373-46710-000 PLATE,NEEDLE VALVE FITTING |
13373-46710-000 |
from US $2.98 |
||
|
21
|
21
02112-0306B-000 SCREW |
02112-0306B-000 |
from US $2.52 |
||
|
22
|
22
13295-29900-000
O RING,PILOT AIR SCREW
|
13295-29900-000 |
— | ||
| replacement | |||||
|
22
|
22
13295-29901-000 O-Ring, Pilot Air Screw |
13295-29901-000 |
from US $1.98 |
||
|
23
|
23
13291-29900-000 WASHERGasket |
13291-29900-000 |
from US $1.51 |
||
|
24
|
24
13269-43G00-000 ADJUSTER |
13269-43G00-000 |
from US $6.15 |
||
|
25
|
25
13247-09G10-000 SCREW,DRAINScrew, drain |
13247-09G10-000 |
from US $2.91 |
||
|
26
|
26
13278-02330-000 O RINGO ring |
13278-02330-000 |
from US $1.62 |
||
|
27
|
27
09355-30705-600
HOSE(3X7X600)
|
09355-30705-600 |
— | ||
| replacement | |||||
|
27
|
27
09355-30001-600 Hose (7.4X3.2X135) |
09355-30001-600 |
from US $5.17 |
||
|
28
|
28
13529-98010-000
CLIP
|
13529-98010-000 |
— | ||
| replacement | |||||
|
28
|
28
13529-98011-000 Clip |
13529-98011-000 |
from US $1.91 |
||
|
29
|
29
13417-37200-000 SPRING |
13417-37200-000 |
from US $1.98 |
||
|
30
|
30
13418-14H00-000 HOLDER,GUIDE |
13418-14H00-000 |
from US $7.80 |
||
|
31
|
31
13411-22G00-000 PLUNGER,STARTER |
13411-22G00-000 |
from US $8.98 |
||
|
32
|
32
13416-26F00-000 CAP |
13416-26F00-000 |
from US $2.10 |
||
|
33
|
33
13481-23F00-000 SPRING |
13481-23F00-000 |
from US $2.65 |
||
|
34
|
34
13382-23F00-000 WASHER |
13382-23F00-000 |
from US $2.13 |
||
|
35
|
35
13387-23F00-000 RING |
13387-23F00-000 |
from US $2.83 |
||
|
36
|
36
13383-14H00-000 NEEDLE,JET |
13383-14H00-000 |
from US $8.98 |
||
|
37
|
37
13385-14H10-000 PIPE |
13385-14H10-000 |
from US $12.92 |
||
|
38
|
38
13281-05A00-000 PLUG |
13281-05A00-000 |
from US $1.60 |
||
|
39
|
39
09140-06027-000 NUTStop, knob |
09140-06027-000 |
from US $0.76 |
||
|
40
|
40
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
| replacement | |||||
|
40
|
40
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
