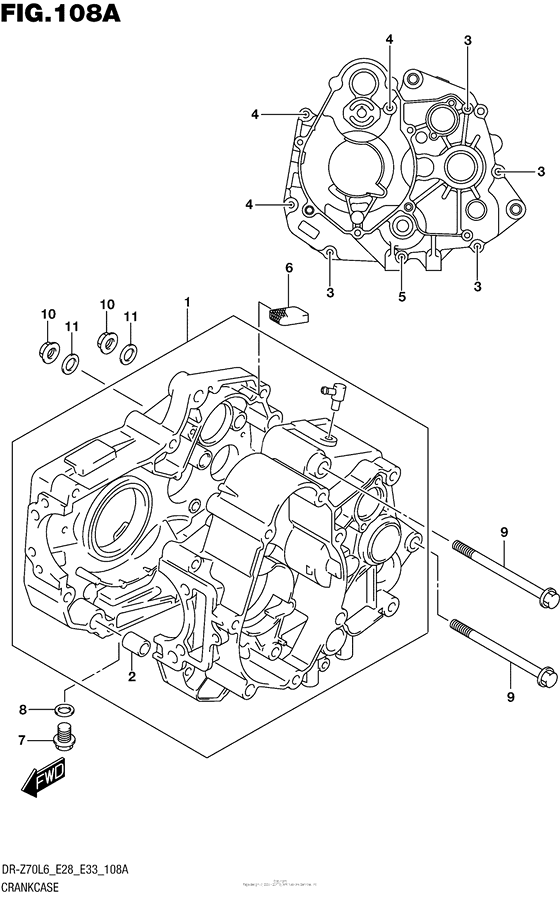

Crankcase Diagram Suzuki DR-Z70
- Year
- 2016
- Model code
- DR-Z70L6
- Sales region
- USA/ Canada
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11300-14810-000 CRANKCASE SET |
11300-14810-000 |
from US $375.36 |
||
|
2
|
2
04211-13189-000 PIN |
04211-13189-000 |
from US $1.19 |
||
|
3
|
3
01547-0630A-000 BOLT |
01547-0630A-000 |
from US $0.96 |
||
|
4
|
4
01547-0640A-000 BOLT |
01547-0640A-000 |
from US $0.91 |
||
|
5
|
5
01547-0675A-000 BOLTBolt |
01547-0675A-000 |
from US $4.47 |
||
|
6
|
6
11186-30D00-000 SEPARATOR,OIL BREATHER |
11186-30D00-000 |
US $4.12 |
||
|
7
|
7
09247-10008-000 PLUG(10X12)Plug, drain |
09247-10008-000 |
from US $1.52 |
||
|
8
|
8
09168-10002-000 GASKET(10X14X3.6)Gasket |
09168-10002-000 |
from US $1.67 |
||
|
9
|
9
09103-08070-000 BOLT(8X100)Bolt (8x100) |
09103-08070-000 |
from US $8.91 |
||
|
10
|
10
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
||
|
11
|
11
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
